SKU: GAC60F-SKF
SKF GAC60F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 60x95x23mm
SKF GAC60F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 60x95x23mm
Regular price
Rs. 17,290.72
ex VAT
Regular price
Sale price
Rs. 17,290.72
ex VAT
Equivalent to: GE60SX GAC60T
In stock
Price Break
10+
Rs. 15,388.74
19+
Rs. 14,524.20
29+
Rs. 14,351.30
39+
Rs. 14,178.39
49+
Rs. 14,005.48
74+
Rs. 13,832.58
99+
Rs. 12,968.04
199+
Rs. 12,795.13
249+
Rs. 12,622.23
499+
Rs. 12,449.32
999+
Rs. 12,103.50
Couldn't load pickup availability
Description
Description
SKF Spherical Plain Bearings: Maintenance-free angular contact spherical plain bearings, with sliding contact surface combination, steel/PTFE composite. |
Equivalent: GE60SX GAC60T
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 23mm

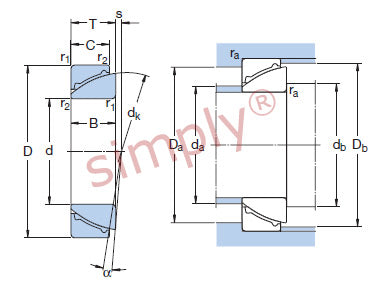

Technical
Technical
| d | 60mm |
|---|---|
| D | 95mm |
| T | 23mm |
| Angle | 3 degrees |
| Dynamic load | 69.5 kN |
| Static load | 112 kN |
| dk | 88.5mm |
| B | 23mm |
| C | 21mm |
| r1 min | 1.5mm |
| r2 min | 0.6mm |
| s | 5.7mm |
| da max | 68mm |
| db max | 77mm |
| Da min | 70mm |
| Db min | 90mm |
| ra max | 1.5mm |
| Weight | 0.73 kg |
