SKU: G1102-KRR-B-AS2/V-INA

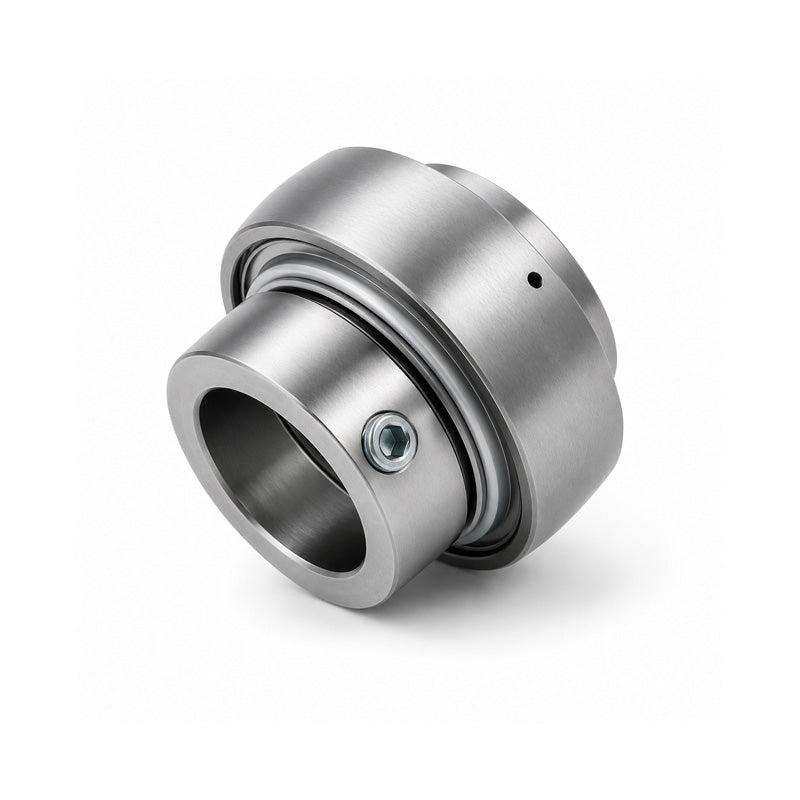

INA G1102KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Eccentric Collar 28.58x62x48.5mm
INA G1102KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Eccentric Collar 28.58x62x48.5mm
Regular price
Rs. 4,654.76
Regular price
Sale price
Rs. 4,654.76
Taxes included.
In stock
Price Break
10+
Rs. 4,142.74
19+
Rs. 3,910.00
29+
Rs. 3,863.45
39+
Rs. 3,816.90
49+
Rs. 3,770.36
74+
Rs. 3,723.81
99+
Rs. 3,491.07
199+
Rs. 3,444.52
249+
Rs. 3,397.97
499+
Rs. 3,351.43
999+
Rs. 3,258.33
Description
Description
|
INA G..KRR-B-AS2/V Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings of the bearings up to 60mm inside diameter, and locking collar in general, have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 62mm
- Width:
- 48.5mm
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| d | 28.58mm |
| DSP | 2.4409 inch |
| DSP | 62mm |
| B1 | 1.9094 inch |
| B1 | 48.5mm |
| B | 36.5mm |
| C | 18mm |
| C2 | 20.7mm |
| Ca | 5mm |
| D1 | 52mm |
| d1 | 40.2mm |
| d3 max | 44mm |
| S | 18.3mm |
| W | 5/32 inch |
| m | 0.395 kg |
| Dynamic load Cr | 20700 N |
| Static load Cor | 11300 N |
| Fatigue limit load Cur | 570 N |
| fo | 13.8 |
