SKU: FYTJ30KF-SKF

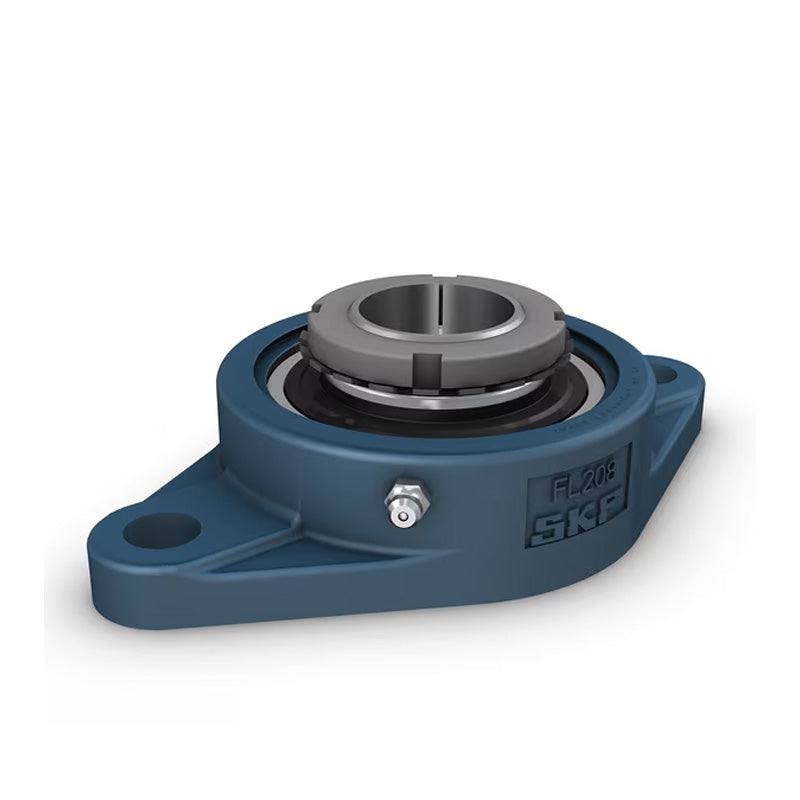

SKF FYTJ30KF Flanged Unit with an Oval Cast Housing with 25mm Insert
SKF FYTJ30KF Flanged Unit with an Oval Cast Housing with 25mm Insert
Regular price
Rs. 7,560.79
Regular price
Sale price
Rs. 7,560.79
Taxes included.
In stock
Price Break
10+
Rs. 6,729.10
19+
Rs. 6,351.06
29+
Rs. 6,275.46
39+
Rs. 6,199.85
49+
Rs. 6,124.24
74+
Rs. 6,048.63
99+
Rs. 5,670.59
199+
Rs. 5,594.98
249+
Rs. 5,519.38
499+
Rs. 5,443.77
999+
Rs. 5,292.55
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Adapter Sleeve: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- FYTJ
- Bolt Hole Centres:
- 117mm
Technical
Technical
| d | 25mm |
|---|---|
| A1 | 30.5mm |
| A2 | 13.5mm |
| B1 | 38mm |
| Da | 76.2mm |
| H | 148mm |
| J | 117mm |
| L | 80mm |
| N | 16mm |
| G | 14mm |
| s1 | 22mm |
| T | 40mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 0.83 kg |
