SKU: FYT3/4TF/VA228-SKF

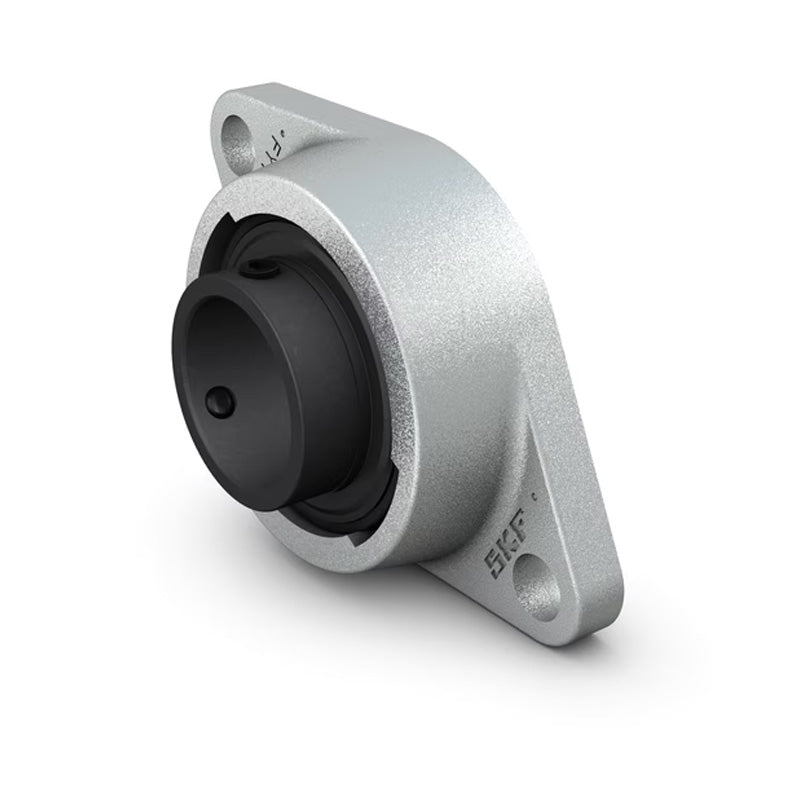

SKF FYT34TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 3/4 inch
SKF FYT34TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 3/4 inch
Regular price
Rs. 11,878.70
ex VAT
Regular price
Sale price
Rs. 11,878.70
ex VAT
In stock
Price Break
10+
Rs. 10,572.04
19+
Rs. 9,978.11
29+
Rs. 9,859.32
39+
Rs. 9,740.53
49+
Rs. 9,621.75
74+
Rs. 9,502.96
99+
Rs. 8,909.03
199+
Rs. 8,790.24
249+
Rs. 8,671.45
499+
Rs. 8,552.66
999+
Rs. 8,315.09
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 3/4 inch |
|---|---|
| A1 | 24.6mm |
| A2 | 11.11mm |
| B | 31mm |
| H | 112mm |
| J | 89.7mm |
| L | 60.5mm |
| N | 11.1mm |
| G | 10mm |
| T | 32.6mm |
| Static load Co | 6.55 kN |
| Weight | 0.5 kg |
