SKU: FYT2.TF/VA228-SKF

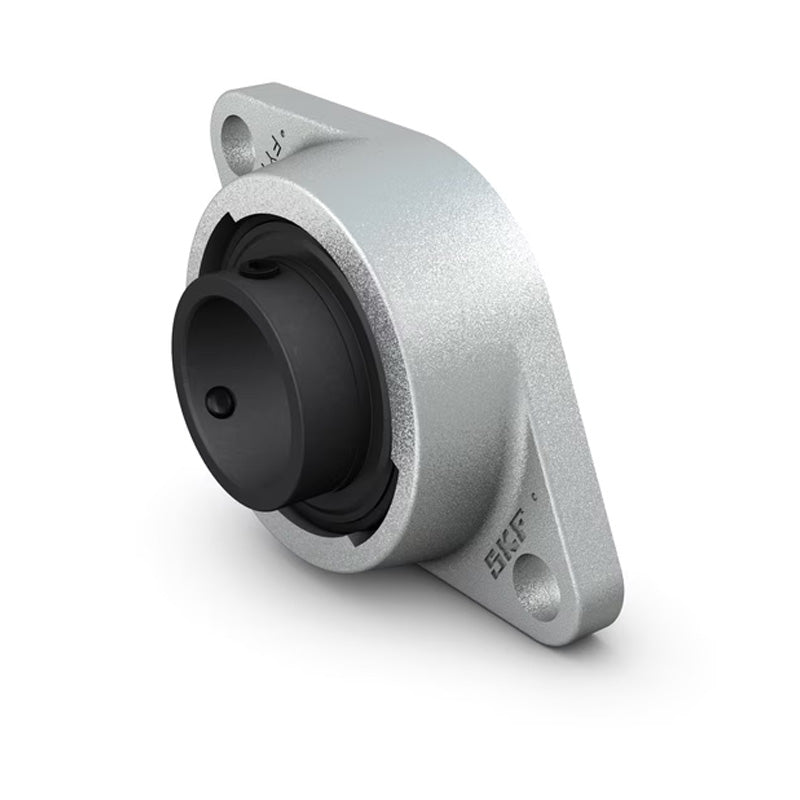

SKF FYT2TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2 inch
SKF FYT2TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2 inch
Regular price
Rs. 37,796.56
ex VAT
Regular price
Sale price
Rs. 37,796.56
ex VAT
In stock
Price Break
10+
Rs. 33,638.94
19+
Rs. 31,749.11
29+
Rs. 31,371.14
39+
Rs. 30,993.18
49+
Rs. 30,615.21
74+
Rs. 30,237.25
99+
Rs. 28,347.42
199+
Rs. 27,969.45
249+
Rs. 27,591.49
499+
Rs. 27,213.52
999+
Rs. 26,457.59
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 2 inch |
|---|---|
| A1 | 47.6mm |
| A2 | 20.6mm |
| B | 55.6mm |
| H | 215.9mm |
| J | 184.2mm |
| L | 127mm |
| N | 19mm |
| G | 16mm |
| T | 62.8mm |
| Static load Co | 29 kN |
| Weight | 3.3 kg |
