SKU: FYT2.TF-SKF

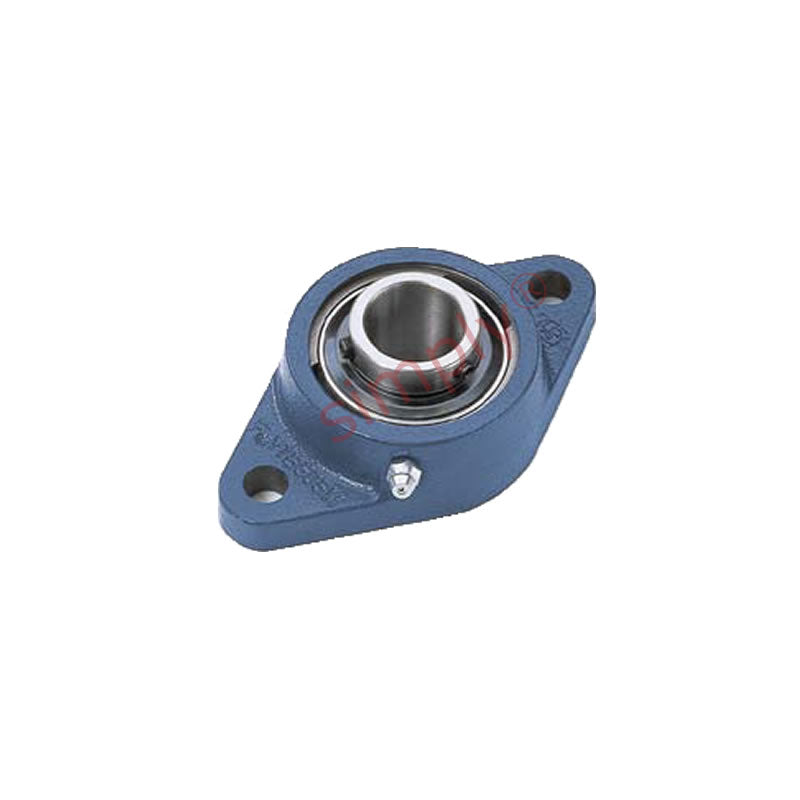

SKF FYT2TF Oval Cast Housing with Grub Screw 2 inch Insert
SKF FYT2TF Oval Cast Housing with Grub Screw 2 inch Insert
Regular price
Rs. 12,535.60
Regular price
Sale price
Rs. 12,535.60
Taxes included.
In stock
Price Break
10+
Rs. 11,156.68
19+
Rs. 10,529.90
29+
Rs. 10,404.55
39+
Rs. 10,279.19
49+
Rs. 10,153.84
74+
Rs. 10,028.48
99+
Rs. 9,401.70
199+
Rs. 9,276.34
249+
Rs. 9,150.99
499+
Rs. 9,025.63
999+
Rs. 8,774.92
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- FYT
- Bolt Hole Centres:
- 184.2mm

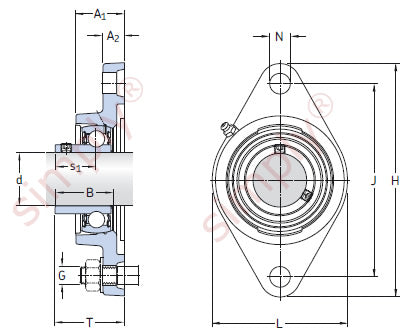

Technical
Technical
| d | 2 inch |
|---|---|
| A1 | 47.6mm |
| A2 | 20.6mm |
| B | 55.6mm |
| H | 216mm |
| J | 184.2mm |
| L | 127mm |
| N | 19mm |
| G | 16mm |
| s1 | 33.4mm |
| T | 62.8mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit | 1.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 3.45 kg |
| Housing | Insert |
