SKU: FYT1.TF/VA201-SKF

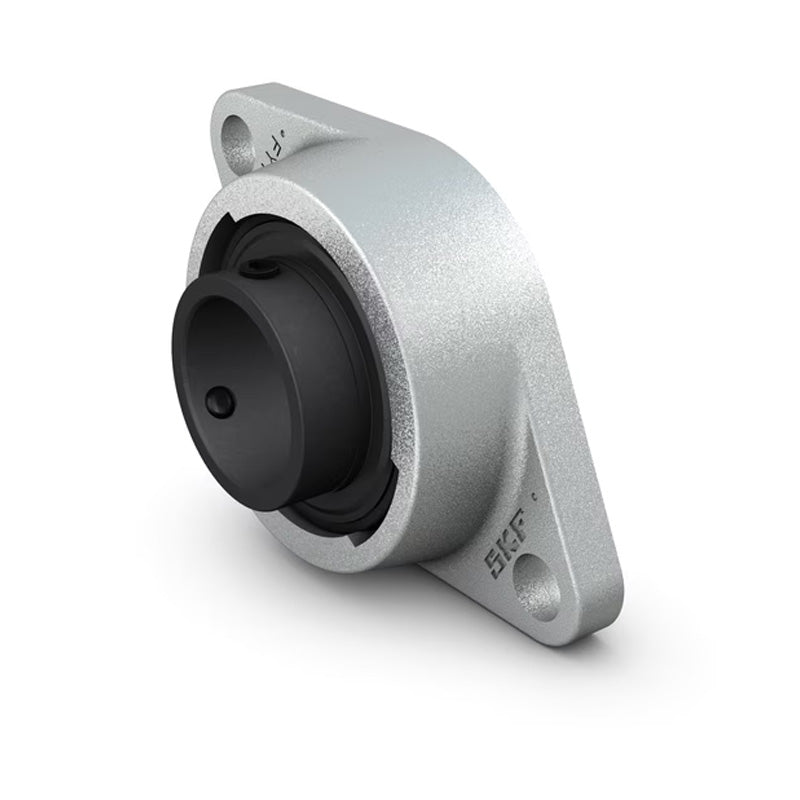

SKF FYT1TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1 inch
SKF FYT1TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1 inch
Regular price
Rs. 15,362.53
ex VAT
Regular price
Sale price
Rs. 15,362.53
ex VAT
In stock
Price Break
10+
Rs. 13,672.65
19+
Rs. 12,904.53
29+
Rs. 12,750.90
39+
Rs. 12,597.27
49+
Rs. 12,443.65
74+
Rs. 12,290.02
99+
Rs. 11,521.90
199+
Rs. 11,368.27
249+
Rs. 11,214.65
499+
Rs. 11,061.02
999+
Rs. 10,753.77
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1 inch |
|---|---|
| A1 | 30mm |
| A2 | 12mm |
| B | 34.1mm |
| H | 124mm |
| J | 98.9mm |
| L | 70mm |
| N | 12.7mm |
| G | 10mm |
| T | 38.8mm |
| Static load Co | 7.8 kN |
| Weight | 0.65 kg |
