SKU: FYT1.3/4TF/VA228-SKF

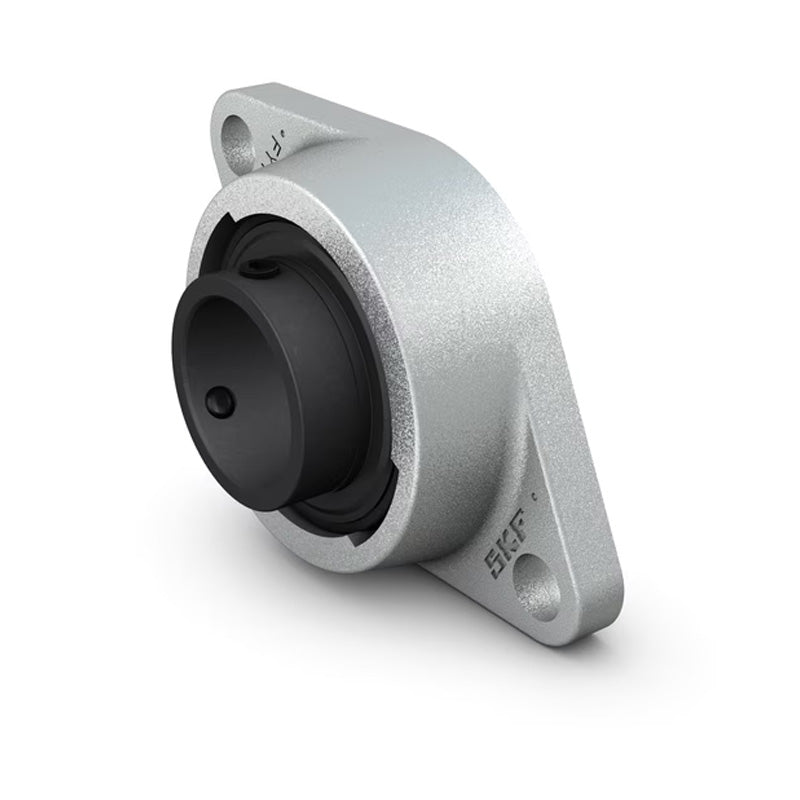

SKF FYT134TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4 inch
SKF FYT134TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4 inch
Regular price
Rs. 34,934.53
ex VAT
Regular price
Sale price
Rs. 34,934.53
ex VAT
In stock
Price Break
10+
Rs. 31,091.73
19+
Rs. 29,345.01
29+
Rs. 28,995.66
39+
Rs. 28,646.31
49+
Rs. 28,296.97
74+
Rs. 27,947.62
99+
Rs. 26,200.90
199+
Rs. 25,851.55
249+
Rs. 25,502.21
499+
Rs. 25,152.86
999+
Rs. 24,454.17
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B | 49.2mm |
| H | 178.5mm |
| J | 148.5mm |
| L | 111mm |
| N | 15.9mm |
| G | 14mm |
| T | 54.2mm |
| Static load Co | 21.6 kN |
| Weight | 1.8 kg |
