SKU: FYM3.TF-SKF

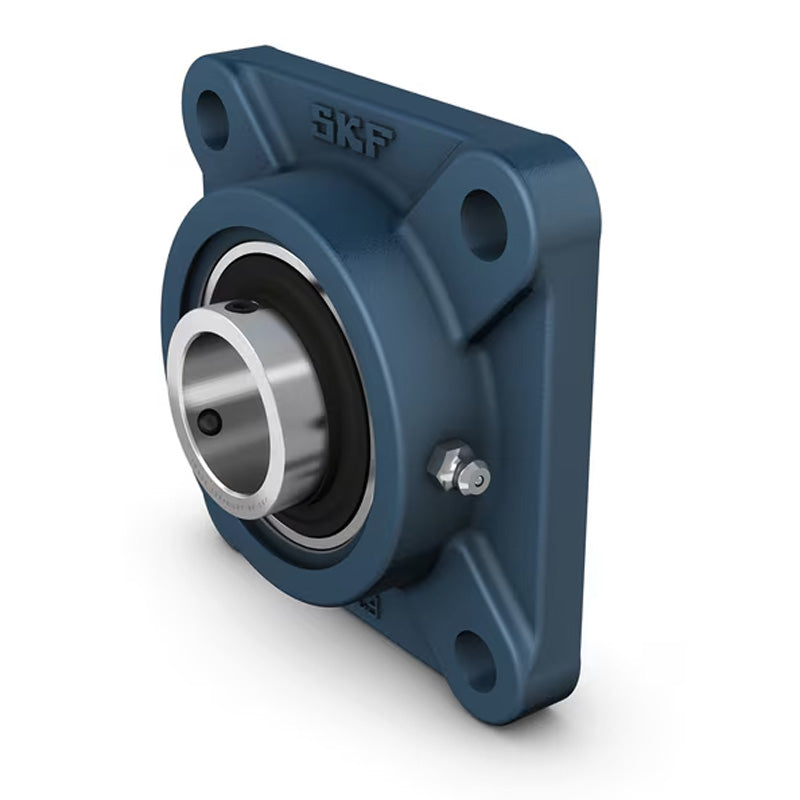

SKF FYM3TF Square Cast Housing with Grub Screw 3 inch Insert
SKF FYM3TF Square Cast Housing with Grub Screw 3 inch Insert
Regular price
Rs. 36,829.72
Regular price
Sale price
Rs. 36,829.72
Taxes included.
In stock
Price Break
10+
Rs. 32,778.45
19+
Rs. 30,936.96
29+
Rs. 30,568.67
39+
Rs. 30,200.37
49+
Rs. 29,832.07
74+
Rs. 29,463.78
99+
Rs. 27,622.29
199+
Rs. 27,253.99
249+
Rs. 26,885.70
499+
Rs. 26,517.40
999+
Rs. 25,780.80
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- FYM
- Bolt Hole Centres:
- 152.4mm

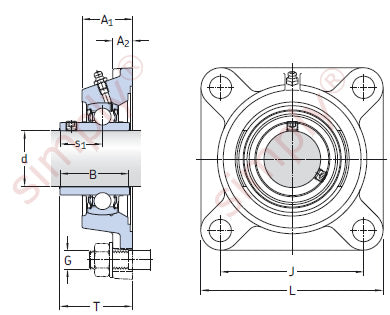

Technical
Technical
| d | 3 inch |
|---|---|
| A1 | 58.7mm |
| A2 | 22.2mm |
| B | 77.9mm |
| J | 152.4mm |
| L | 197mm |
| G | 20mm |
| s1 | 47.7mm |
| T | 82.6mm |
| Static load Cr | 53 kN |
| Dynamic load Cor | 72.8 kN |
| Fatigue load limit | 2.16 kN |
| Limiting speed | 2400 rpm |
| Weight | 8 kg |
| Housing | Insert |
