SKU: FYJ65KF-SKF

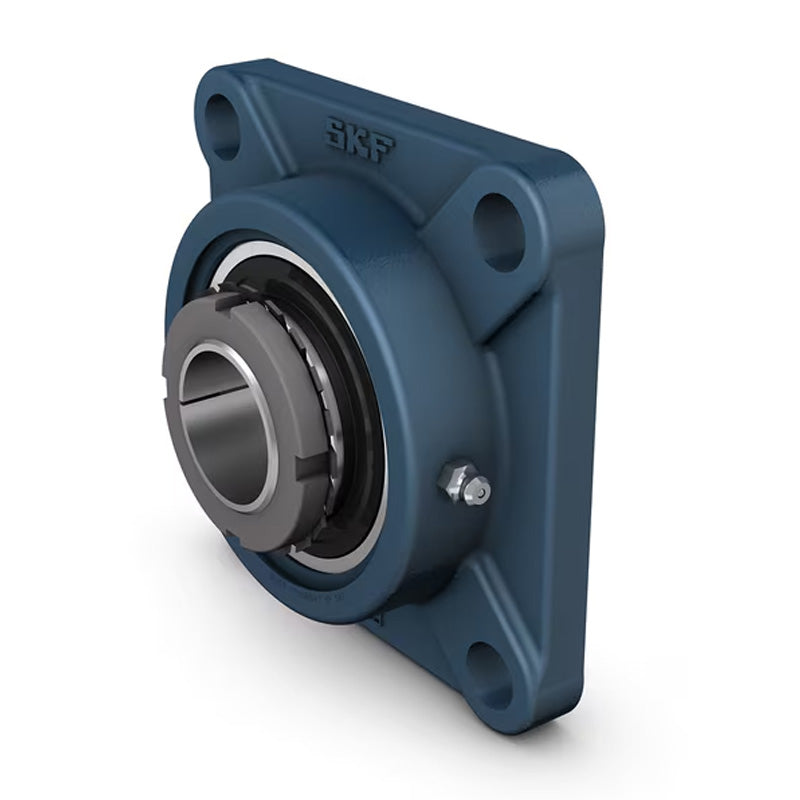

SKF FYJ65KF Flanged Unit with a Square Cast Housing with 60mm Insert
SKF FYJ65KF Flanged Unit with a Square Cast Housing with 60mm Insert
Regular price
Rs. 24,799.80
Regular price
Sale price
Rs. 24,799.80
Taxes included.
In stock
Price Break
10+
Rs. 22,071.82
19+
Rs. 20,831.83
29+
Rs. 20,583.83
39+
Rs. 20,335.84
49+
Rs. 20,087.84
74+
Rs. 19,839.84
99+
Rs. 18,599.85
199+
Rs. 18,351.85
249+
Rs. 18,103.85
499+
Rs. 17,855.86
999+
Rs. 17,359.86
Description
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Style:
- FYJ
- Bolt Hole Centres:
- 149mm
Technical
Technical
| d | 60mm |
|---|---|
| A1 | 50mm |
| A2 | 22mm |
| B1 | 65mm |
| Da | 161.9mm |
| J | 149mm |
| L | 187mm |
| N | 19mm |
| G | 16mm |
| s1 | 35.8mm |
| T | 65.8mm |
| Static load Cr | 40 kN |
| Dynamic load Cor | 57.2 kN |
| Fatigue load limit Pu | 1.7 kN |
| Limiting speed | 3000 rpm |
| Weight | 6 kg |
