SKU: FYJ508-SKF

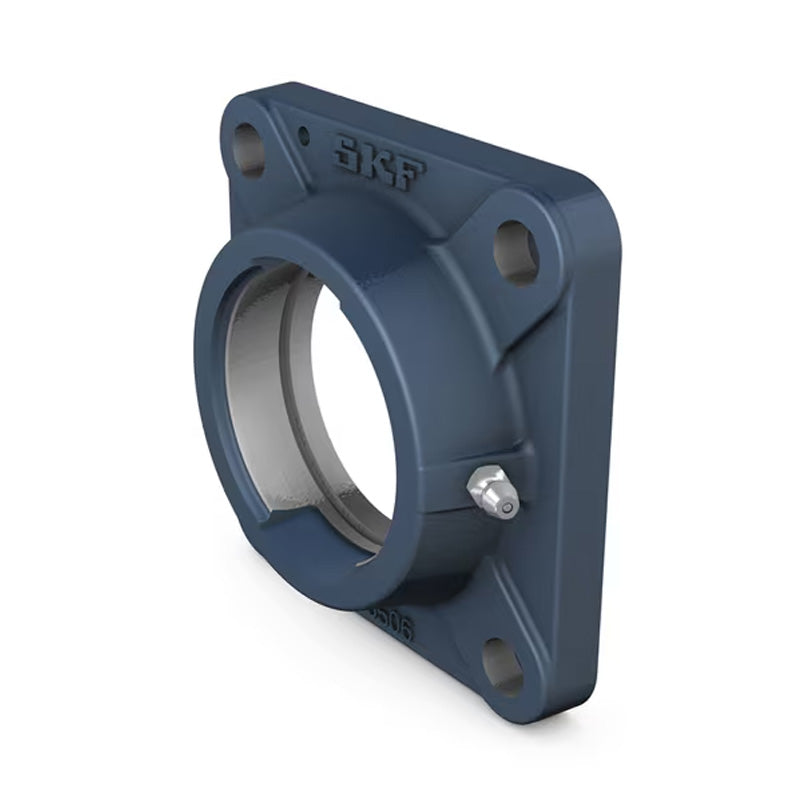

SKF FYJ508 Four Bolt Cast Iron Square Housing Unit Only
SKF FYJ508 Four Bolt Cast Iron Square Housing Unit Only
Regular price
Rs. 1,732.80
ex VAT
Regular price
Sale price
Rs. 1,732.80
ex VAT
In stock
Price Break
10+
Rs. 1,542.19
19+
Rs. 1,455.55
29+
Rs. 1,438.22
39+
Rs. 1,420.90
49+
Rs. 1,403.57
74+
Rs. 1,386.24
99+
Rs. 1,299.60
199+
Rs. 1,282.27
249+
Rs. 1,264.94
499+
Rs. 1,247.62
999+
Rs. 1,212.96
Couldn't load pickup availability
Description
Description
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads.
Benefits: Grease fitting allows re-lubrication
Note: This Housing unit does not inlcude an insert
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Style:
- FYJ
- Bolt Hole Centres:
- 102mm

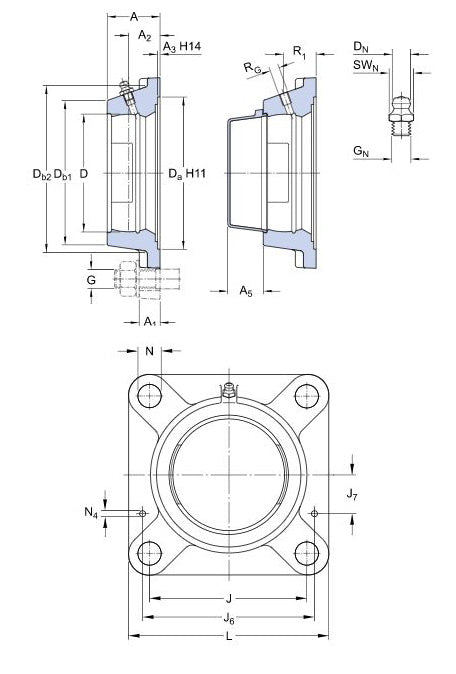

Technical
Technical
| D | 80mm |
|---|---|
| Da | 115.9mm |
| Db1 | 99mm |
| Db2 | 107mm |
| A | 36mm |
| A1 | 14mm |
| A2 | 21 mm |
| A3 | 3.2mm |
| J | 102mm |
| L | 130mm |
| N | 16mm |
| RG | 1/4-28UNF |
| R1 | 23mm |
| DN | 6.5mm |
| SWN | 7mm |
| GN | 1/4-28 SAE-LT |
| J7 | 34mm |
| N4 | 4mm |
| G | 14mm |
| G | 0.5625in |
