SKU: FY60TF-SKF

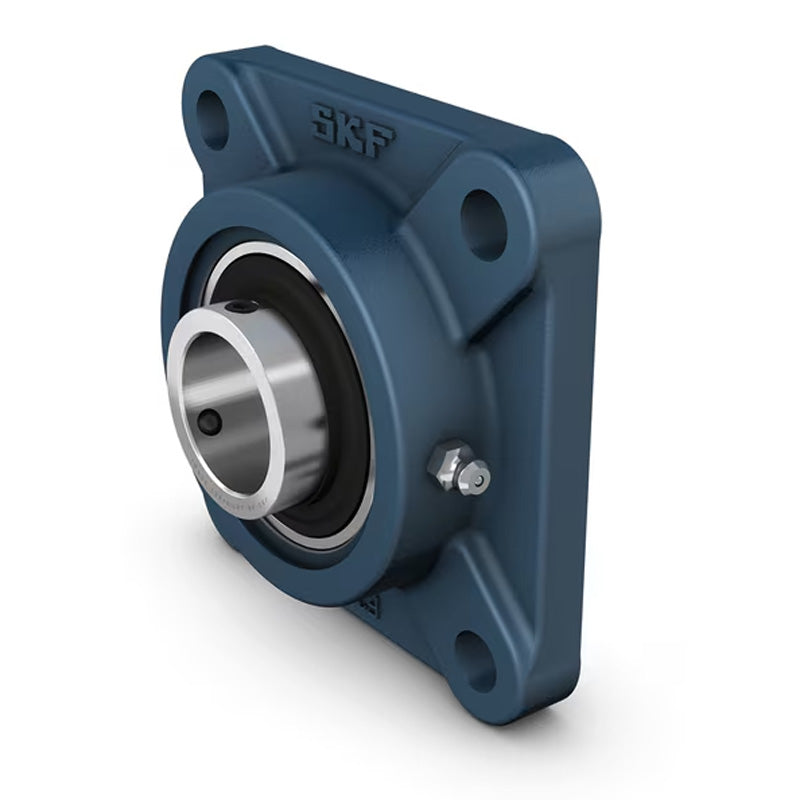

SKF FY60TF Square Cast Housing with Grub Screw 60mm Insert
SKF FY60TF Square Cast Housing with Grub Screw 60mm Insert
Regular price
Rs. 19,462.69
Regular price
Sale price
Rs. 19,462.69
Taxes included.
In stock
Price Break
10+
Rs. 17,321.79
19+
Rs. 16,348.66
29+
Rs. 16,154.03
39+
Rs. 15,959.41
49+
Rs. 15,764.78
74+
Rs. 15,570.15
99+
Rs. 14,597.02
199+
Rs. 14,402.39
249+
Rs. 14,207.76
499+
Rs. 14,013.14
999+
Rs. 13,623.88
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Style:
- FY
- Bolt Hole Centres:
- 143mm
Technical
Technical
| d | 60mm |
|---|---|
| A1 | 52mm |
| A2 | 17mm |
| B | 65.1mm |
| Da | 161.9mm |
| J | 143mm |
| L | 175mm |
| N | 16mm |
| G | 16mm |
| s1 | 39.7mm |
| T | 73.7mm |
| Static load Cr | 36 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit Pu | 1.53 kN |
| Limiting speed | 3400 rpm |
| Weight | 4.6 kg |
| Compatible end cover closed | ECY212 |
