SKU: FY3/4TF/VA201-SKF

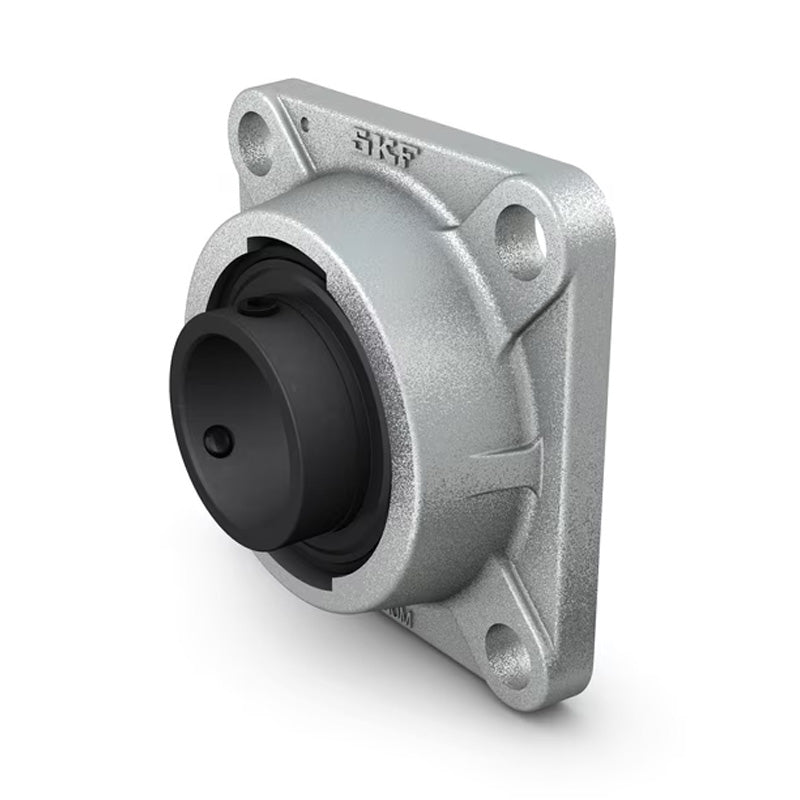

SKF FY3/4TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 3/4inch
SKF FY3/4TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 3/4inch
Regular price
Rs. 17,515.39
ex VAT
Regular price
Sale price
Rs. 17,515.39
ex VAT
In stock
Price Break
10+
Rs. 15,588.70
19+
Rs. 14,712.93
29+
Rs. 14,537.77
39+
Rs. 14,362.62
49+
Rs. 14,187.47
74+
Rs. 14,012.31
99+
Rs. 13,136.54
199+
Rs. 12,961.39
249+
Rs. 12,786.23
499+
Rs. 12,611.08
999+
Rs. 12,260.77
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 3/4 inch |
|---|---|
| A1 | 29.5mm |
| A2 | 11mm |
| B | 31mm |
| J | 63.5mm |
| L | 86mm |
| N | 11.1mm |
| G | 10mm |
| T | 37.3mm |
| Dynamic load C | 12.7 kN |
| Static load Co | 6.55 kN |
| Weight | 0.63 kg |
