SKU: FY25TF-SKF

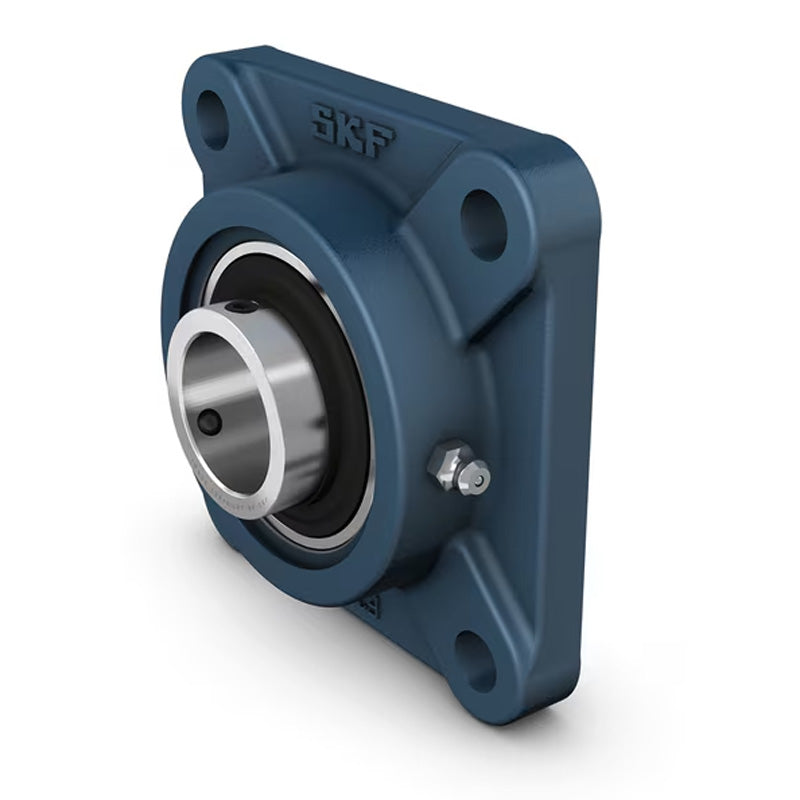

SKF FY25TF Square Cast Housing with Grub Screw 25mm Insert
SKF FY25TF Square Cast Housing with Grub Screw 25mm Insert
Regular price
Rs. 3,644.69
Regular price
Sale price
Rs. 3,644.69
Taxes included.
In stock
Price Break
10+
Rs. 3,243.77
19+
Rs. 3,061.54
29+
Rs. 3,025.09
39+
Rs. 2,988.65
49+
Rs. 2,952.20
74+
Rs. 2,915.75
99+
Rs. 2,733.52
199+
Rs. 2,697.07
249+
Rs. 2,660.62
499+
Rs. 2,624.18
999+
Rs. 2,551.28
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- FY
- Bolt Hole Centres:
- 70mm
Technical
Technical
| d | 25mm |
|---|---|
| A1 | 30mm |
| A2 | 12mm |
| B | 34.1mm |
| Da | 74.6mm |
| J | 70mm |
| L | 95mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 19.8mm |
| T | 38.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| A5 | 18mm |
| Weight | 0.77 kg |
| Compatible end cover closed | ECY205 |
