SKU: FY2.7/16TF/VA228-SKF

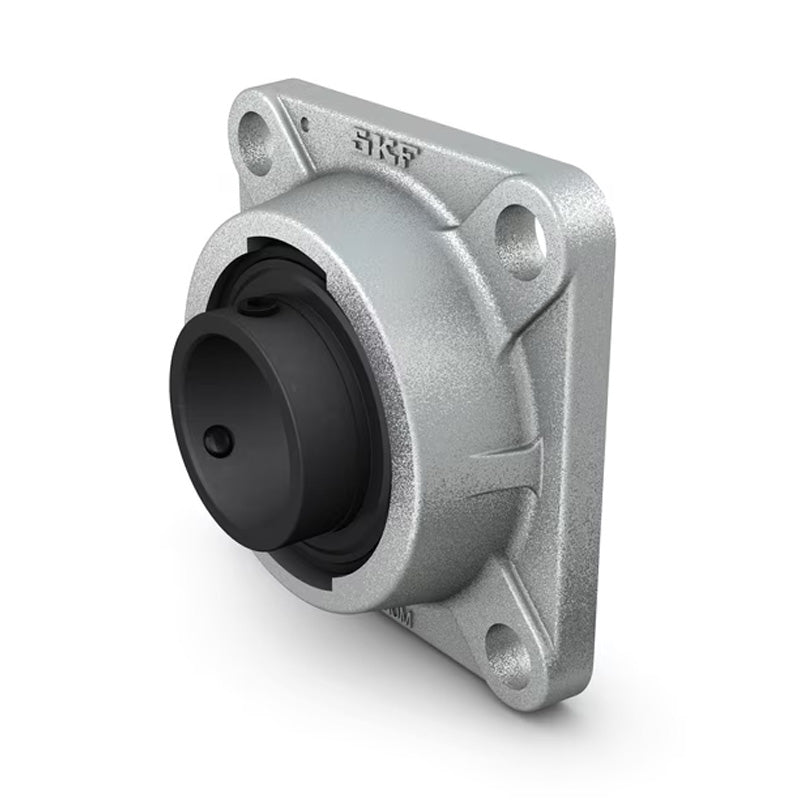

SKF FY2-7/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2-7/16inch
SKF FY2-7/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 2-7/16inch
Regular price
Rs. 59,240.28
ex VAT
Regular price
Sale price
Rs. 59,240.28
ex VAT
In stock
Price Break
10+
Rs. 52,723.85
19+
Rs. 49,761.84
29+
Rs. 49,169.43
39+
Rs. 48,577.03
49+
Rs. 47,984.63
74+
Rs. 47,392.22
99+
Rs. 44,430.21
199+
Rs. 43,837.81
249+
Rs. 43,245.40
499+
Rs. 42,653.00
999+
Rs. 41,468.20
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 2-7/16 inch |
|---|---|
| A1 | 52mm |
| A2 | 17mm |
| B | 65.1mm |
| J | 143mm |
| L | 175mm |
| N | 19mm |
| G | 16mm |
| T | 73.7mm |
| Dynamic load C | 52.7 kN |
| Static load Co | 36 kN |
| Weight | 4.65 kg |
