SKU: FY1.7/16TF/VA201-SKF

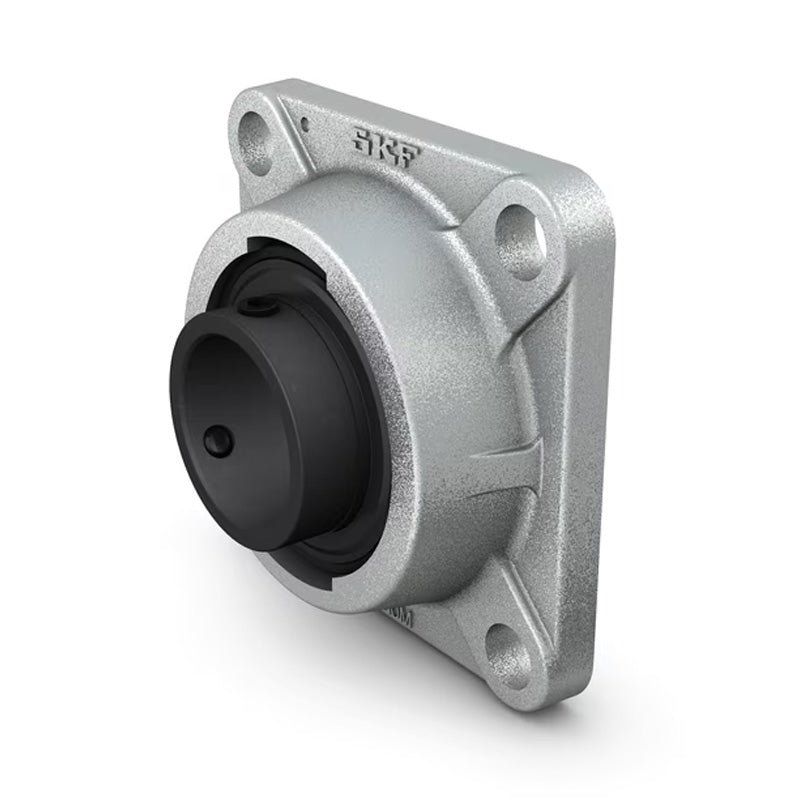

SKF FY1-7/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-7/16inch
SKF FY1-7/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-7/16inch
Regular price
Rs. 29,231.99
ex VAT
Regular price
Sale price
Rs. 29,231.99
ex VAT
In stock
Price Break
10+
Rs. 26,016.47
19+
Rs. 24,554.87
29+
Rs. 24,262.55
39+
Rs. 23,970.23
49+
Rs. 23,677.91
74+
Rs. 23,385.59
99+
Rs. 21,923.99
199+
Rs. 21,631.67
249+
Rs. 21,339.35
499+
Rs. 21,047.03
999+
Rs. 20,462.39
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| A1 | 34.5mm |
| A2 | 13mm |
| B | 42.9mm |
| J | 92mm |
| L | 118mm |
| N | 14.3mm |
| G | 12mm |
| T | 46.4mm |
| Dynamic load C | 25.5 kN |
| Static load Co | 15.3 kN |
| Weight | 1.42 kg |
