SKU: FY1.3/4TF/VA228-SKF

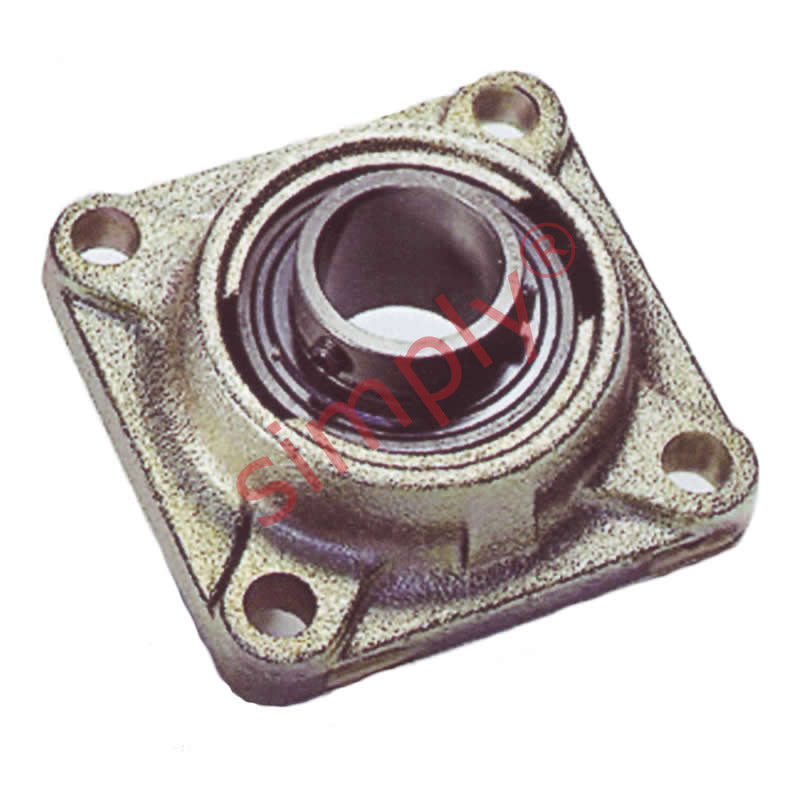

SKF FY1-3/4TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4inch
SKF FY1-3/4TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4inch
Regular price
Rs. 36,103.40
ex VAT
Regular price
Sale price
Rs. 36,103.40
ex VAT
In stock
Price Break
10+
Rs. 32,132.03
19+
Rs. 30,326.86
29+
Rs. 29,965.82
39+
Rs. 29,604.79
49+
Rs. 29,243.75
74+
Rs. 28,882.72
99+
Rs. 27,077.55
199+
Rs. 26,716.52
249+
Rs. 26,355.48
499+
Rs. 25,994.45
999+
Rs. 25,272.38
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B | 49.2mm |
| J | 105mm |
| L | 137mm |
| N | 15.9mm |
| G | 14mm |
| T | 54.2mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 2.12 kg |
