SKU: FY1.1/2TF/VA228-SKF

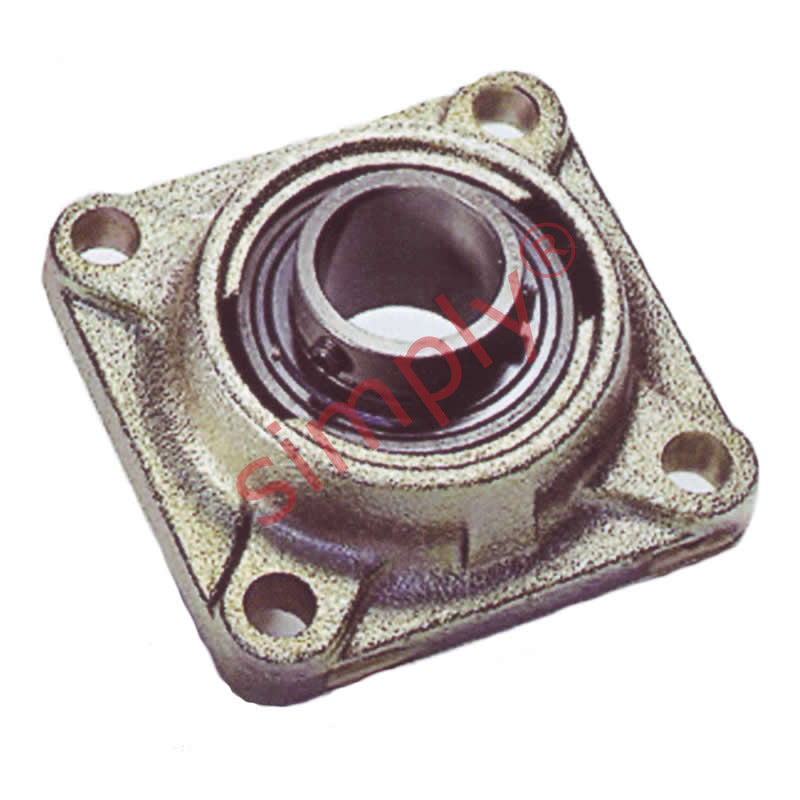

SKF FY1-1/2TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-1/2inch
SKF FY1-1/2TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-1/2inch
Regular price
Rs. 35,013.05
ex VAT
Regular price
Sale price
Rs. 35,013.05
ex VAT
In stock
Price Break
10+
Rs. 31,161.61
19+
Rs. 29,410.96
29+
Rs. 29,060.83
39+
Rs. 28,710.70
49+
Rs. 28,360.57
74+
Rs. 28,010.44
99+
Rs. 26,259.79
199+
Rs. 25,909.66
249+
Rs. 25,559.53
499+
Rs. 25,209.40
999+
Rs. 24,509.14
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| A1 | 38.5mm |
| A2 | 14mm |
| B | 49.2mm |
| J | 101.5mm |
| L | 130mm |
| N | 14.3mm |
| G | 12mm |
| T | 54.2mm |
| Dynamic load C | 30.7 kN |
| Static load Co | 19 kN |
| Weight | 1.94 kg |
