SKU: FS-M06S-MB

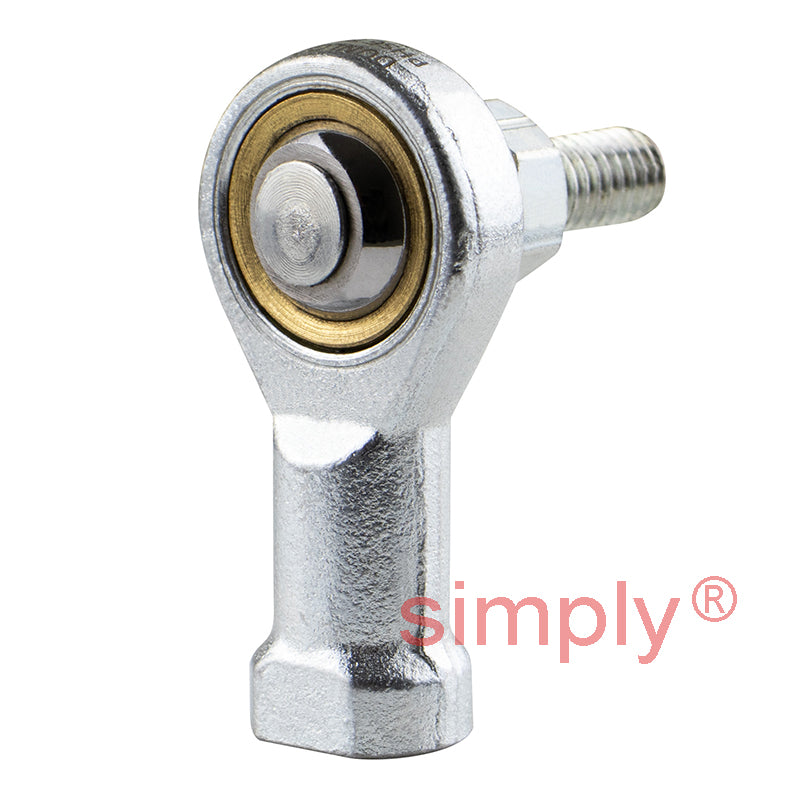

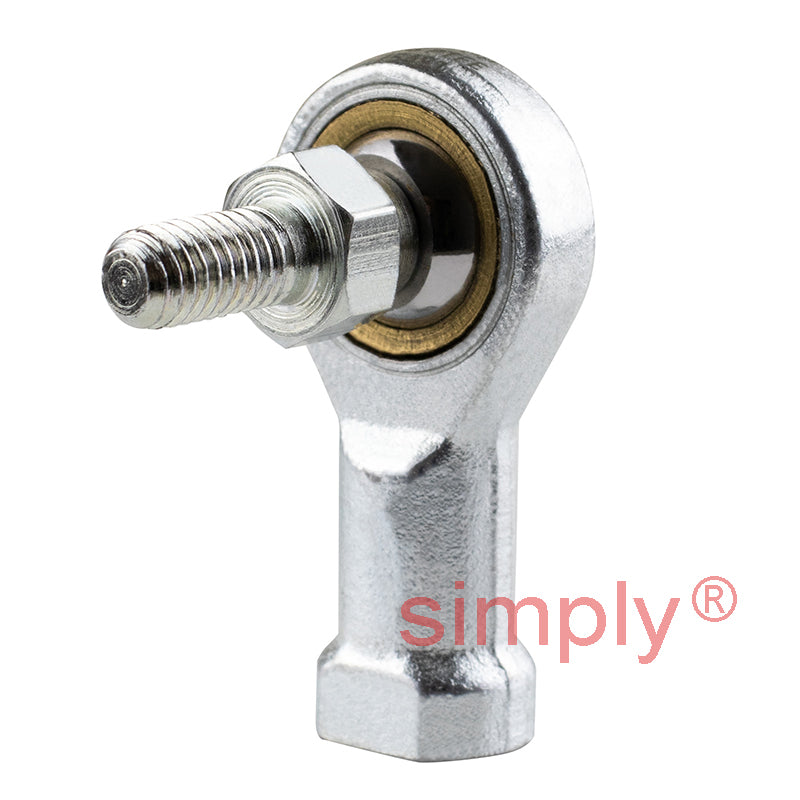

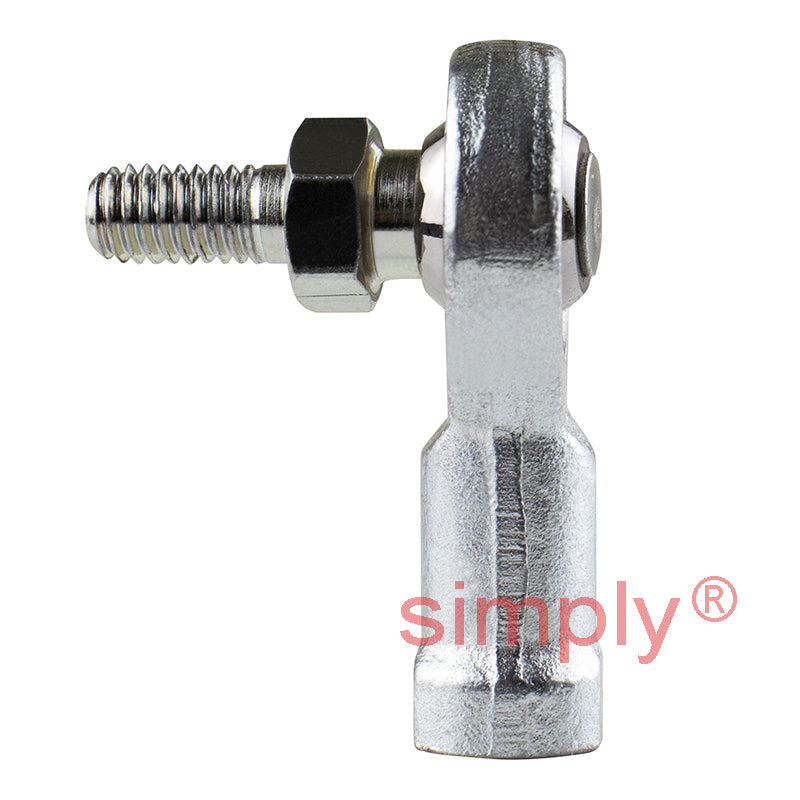

Branded FS-M06S Right Hand Metric Steel / PTFE Lined Maintenance Free Studded Female Rod End M6x1 Thread
Branded FS-M06S Right Hand Metric Steel / PTFE Lined Maintenance Free Studded Female Rod End M6x1 Thread
Regular price
Rs. 1,408.21
Regular price
Sale price
Rs. 1,408.21
Taxes included.
Equivalent to: PHS6+STUD
In stock
Price Break
10+
Rs. 1,253.31
19+
Rs. 1,182.90
29+
Rs. 1,168.81
39+
Rs. 1,154.73
49+
Rs. 1,140.65
74+
Rs. 1,126.57
99+
Rs. 1,056.16
199+
Rs. 1,042.08
249+
Rs. 1,027.99
499+
Rs. 1,013.91
999+
Rs. 985.75
Description
Description
|
FSS Studded Maintenance Free Rod Ends With Female Thread: The FSS studded series are a steel on steel range of female rod ends incorporating a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, they do not require maintenance. Temperature range -200c to +260c. Stud, 230M07PB plated white/blue passivate (silver/clear). Outer race may feature a bronze or silver-coloured finish. Benefits: High shock loads, extended wear life, no maintenance. |
Equivalent: PHS6+STUD
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M6x1
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- PTFE Lined
Technical
Technical
| Stud size | M6 |
|---|---|
| Thread | M6x1 |
| A | 12mm |
| B | 12mm |
| C | 10mm |
| K | 10mm |
| Static load | 1930 N |
