SKU: FS-07-MB

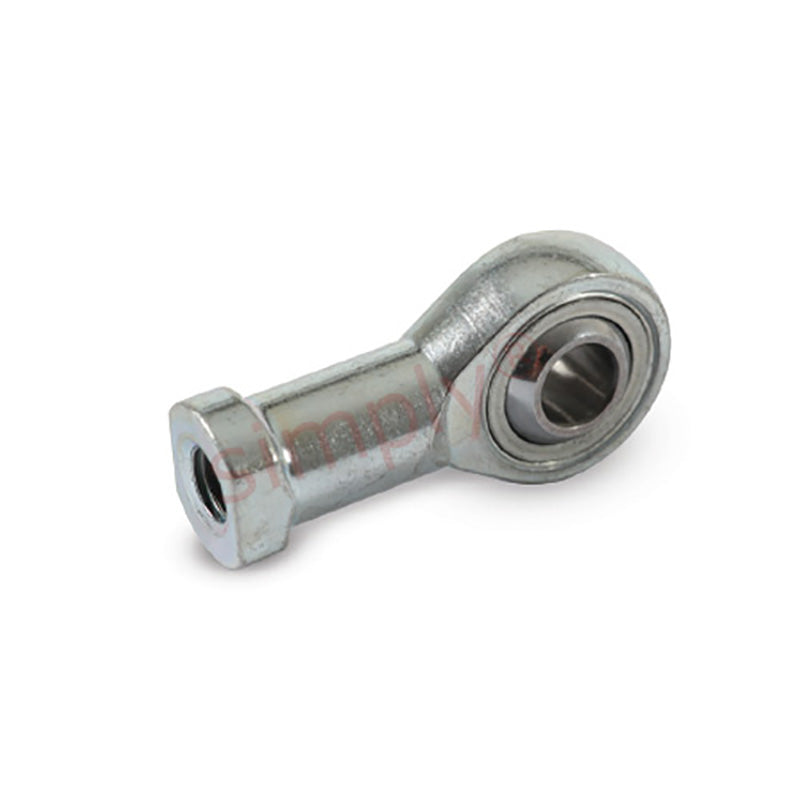

Branded FS-07 Right Hand Imperial Steel / PTFE Lined Maintenance Free Plain Female Rod End 7/16 UNF Thread
Branded FS-07 Right Hand Imperial Steel / PTFE Lined Maintenance Free Plain Female Rod End 7/16 UNF Thread
Regular price
Rs. 3,178.71
Regular price
Sale price
Rs. 3,178.71
Taxes included.
In stock
Price Break
10+
Rs. 2,829.05
19+
Rs. 2,670.12
29+
Rs. 2,638.33
39+
Rs. 2,606.54
49+
Rs. 2,574.76
74+
Rs. 2,542.97
99+
Rs. 2,384.03
199+
Rs. 2,352.25
249+
Rs. 2,320.46
499+
Rs. 2,288.67
999+
Rs. 2,225.10
Description
Description
|
FS Maintenance Free Rod Ends With Female Thread: The FS series are a steel on steel range of female rod ends incorporating a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, they do not require maintenance. Temperature range -200c to +260c Benefits: High shock loads, extended wear life, no maintenance |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 7/16 UNF
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 11.11mm = 0.437 (7/16) inch
- Material:
- PTFE Lined
Technical
Technical
| Bore size | 7/16 inch |
|---|---|
| Thread | 7/16 UNF |
| W | 0.562 inch |
| H | 0.437 inch |
| D | 1.25 inch |
| L1 | 1.812 inch |
| L2 | 1.062 inch |
| O | 14.9mm |
| AF | 0.625 inch |
| Static load | 19400 N |
