SKU: FNL511B-SKF

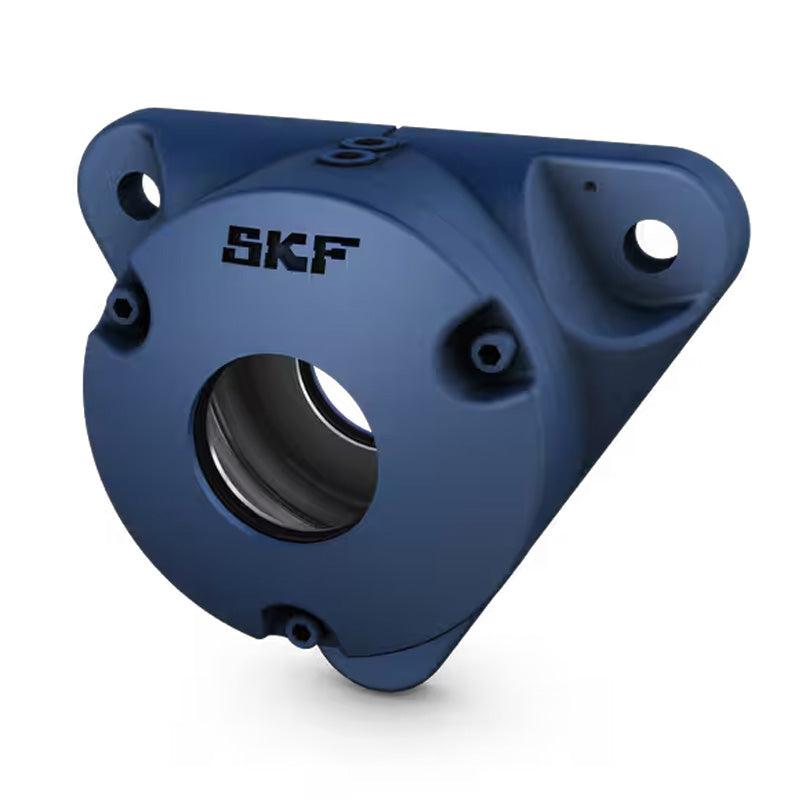

SKF FNL511B Cast Iron Split Three Bolt Flanged Housing
SKF FNL511B Cast Iron Split Three Bolt Flanged Housing
Regular price
Rs. 21,376.57
Regular price
Sale price
Rs. 21,376.57
Taxes included.
In stock
Price Break
10+
Rs. 19,025.15
19+
Rs. 17,956.32
29+
Rs. 17,742.55
39+
Rs. 17,528.79
49+
Rs. 17,315.02
74+
Rs. 17,101.26
99+
Rs. 16,032.43
199+
Rs. 15,818.66
249+
Rs. 15,604.90
499+
Rs. 15,391.13
999+
Rs. 14,963.60
Description
Description
- Brand / Quality:
- SKF - High Quality
- Style:
- FNL
- Pitch Circle Diameter:
- 170mm
- Belt Pitch Length Approx:
- 170mm

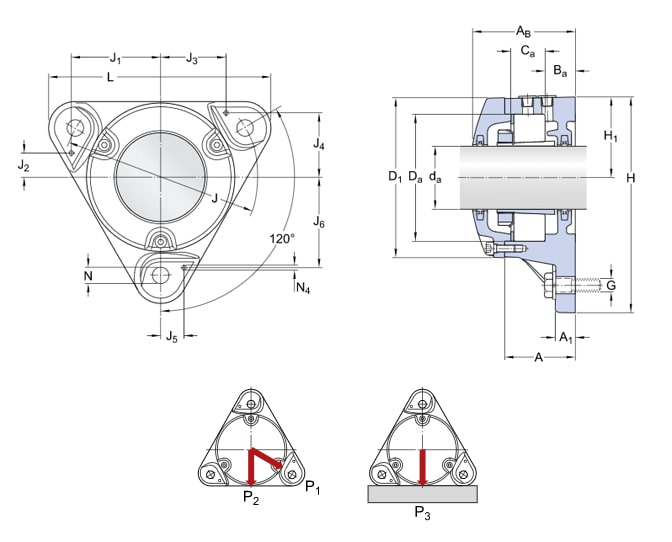

Technical
Technical
| da | 50mm |
|---|---|
| Ca | 27mm |
| Da | 100mm |
| A | 56mm |
| A1 | 15mm |
| AB | 82mm |
| Ba | 24mm |
| D | 127mm |
| H | 172.5mm |
| H1 | 65mm |
| J | 170mm |
| L | 192mm |
| N | 14mm |
| J1 | 77mm |
| J2 | 21mm |
| J3 | 57mm |
| J4 | 56mm |
| J5 | 21mm |
| J6 | 77mm |
| N4 max | 6mm |
| P1 | 110 kN |
| P2 | 80 kN |
| P3 | 110 kN |
| Mass | 4.3 kg |
| Cover bolt, size | 3 x M 6x20 |
| Cover bolt, rec. tightening torque | 10 Nm |
| Appropriate attachment bolt, size G | 12mm |
| Appropriate attachment bolt, rec. tightening torque | 80 Nm |
| Initial grease fill, 20% | 40 g |
| Initial grease fill, 40% | 60 g |
