SKU: FMTC20-E-PBC

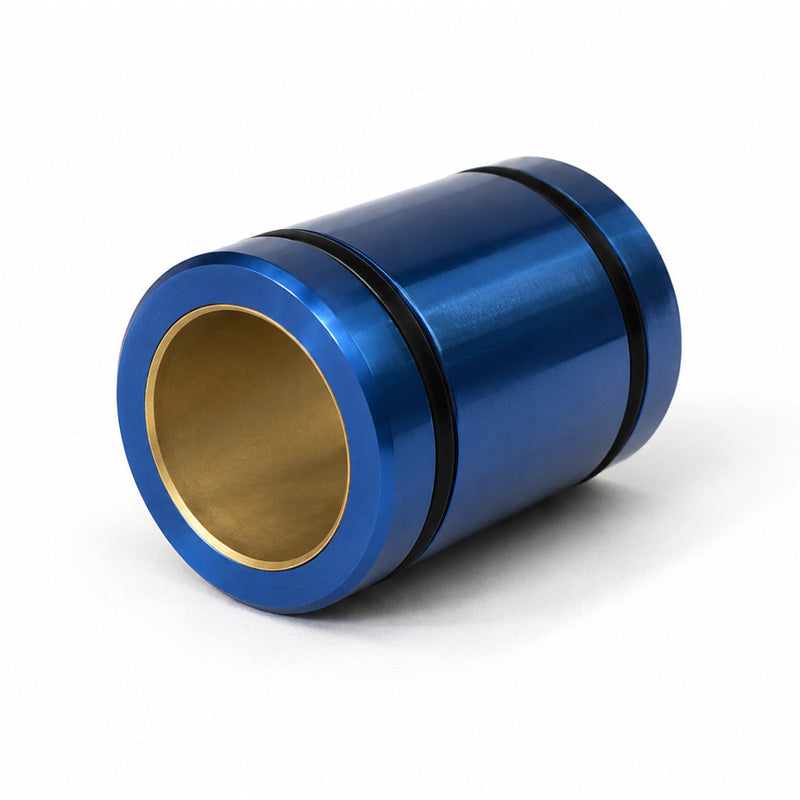

Simplicity FMTC20E Metric Compact Compensated Thin Wall Linear Plain Bearing with Frelon J Liner 20x28x30mm Allow 2-3 Days
Simplicity FMTC20E Metric Compact Compensated Thin Wall Linear Plain Bearing with Frelon J Liner 20x28x30mm Allow 2-3 Days
Regular price
Rs. 5,064.42
Regular price
Sale price
Rs. 5,064.42
Taxes included.
In stock
Price Break
10+
Rs. 4,507.33
19+
Rs. 4,254.11
29+
Rs. 4,203.47
39+
Rs. 4,152.82
49+
Rs. 4,102.18
74+
Rs. 4,051.54
99+
Rs. 3,798.32
199+
Rs. 3,747.67
249+
Rs. 3,697.03
499+
Rs. 3,646.38
999+
Rs. 3,545.09
Description
Description
Simplicity Metric Compact Compensated Thin Wall Linear Plain Bearings with Frelon J Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. They are made from the same construction and smooth operation as the FM series but in a more compact package. The Frelon J has a yellow material formulated to provide the optimum performance with 300 series stainless steel and softer shafting such as bare aluminium.
Benefits: Self lubricating for oil free operation, Static Load Capacities up to 72 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 28mm
- Length:
- 30mm
Technical
Technical
| Nominal Size | 20mm |
|---|---|
| Bearing ID A Min | 20.096mm |
| Bearing ID A Max | 20.129mm |
| Outside Diameter B h7 Min | 27.979mm |
| Outside Diameter B h7 Max | 28mm |
| Length C Min | 29.619mm |
| Length C Max | 30mm |
| Concentric Max | 0.0254mm |
| Between O-Ring Grooves J | 14mm |
| O-Ring Grooves Width JA | 2mm |
| O-Ring Grooves Diameter JB | 25.5mm |
| O-Ring Size | 25x1.5 |
| O-Ring Part No. | 6000032 |
| Effective Surface Area | 6CM<sup>2</sup> |
| Max Static Load Frelon® | 6180 N |
| PV Max | 0.35 N/mm<sup>2</sup> |
| Speed Running Dry | 0.71 (m/s) |
| Speed Running with Lubrication | 2.03 (m/s) |
