SKU: FMT6-PBC

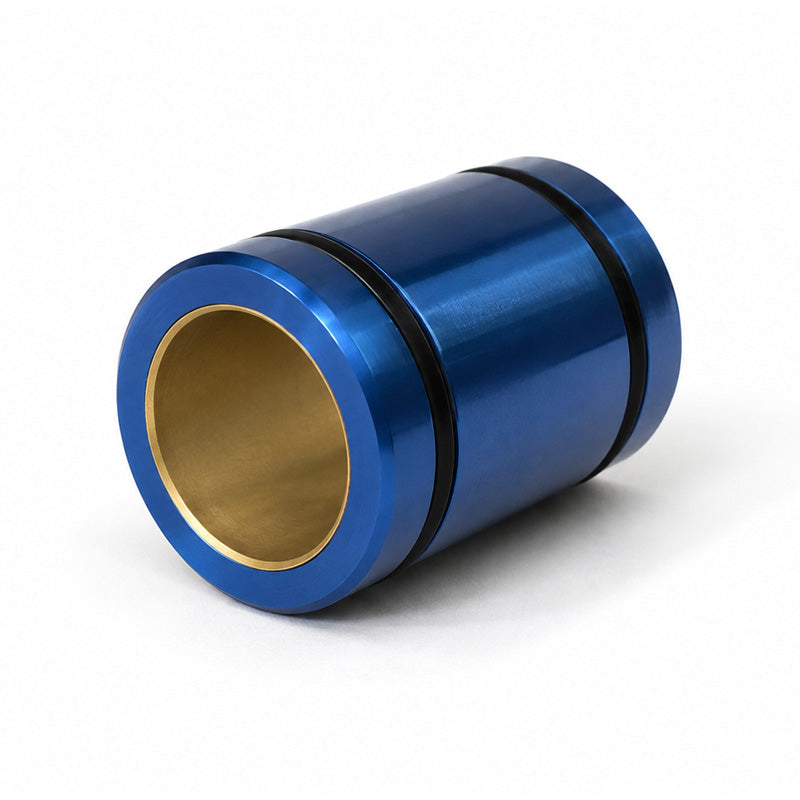

Simplicity FMT06 Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon Gold Liner 6x12x22mm Allow 2-3 Days
Simplicity FMT06 Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon Gold Liner 6x12x22mm Allow 2-3 Days
Regular price
Rs. 3,849.52
Regular price
Sale price
Rs. 3,849.52
Taxes included.
In stock
Price Break
10+
Rs. 3,426.07
19+
Rs. 3,233.60
29+
Rs. 3,195.10
39+
Rs. 3,156.61
49+
Rs. 3,118.11
74+
Rs. 3,079.62
99+
Rs. 2,887.14
199+
Rs. 2,848.64
249+
Rs. 2,810.15
499+
Rs. 2,771.65
999+
Rs. 2,694.66
Description
Description
Simplicity Metric Compact Precision Thin Wall Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. They are made from the same construction and smooth operation as the FM series but in a more compact package. The Frelon GOLD® has a dark gold high performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self lubricating for oil free operation, Static Load Capacities up to 72 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 12mm
- Length:
- 22mm
Technical
Technical
| Nominal Size | 6mm |
|---|---|
| Bearing ID A Min | 6.01mm |
| Bearing ID A Max | 6.028mm |
| Outside Diameter B h7 Min | 11.982mm |
| Outside Diameter B h7 Max | 12mm |
| Length C Min | 21.619mm |
| Length C Max | 22mm |
| Concentric Max | 0.0254mm |
| Effective Surface Area | 1.3CM<sup>2</sup> |
| Max Static Load Frelon® | 2727 N |
| PV Max | 0.7 N/mm<sup>2</sup> |
| Speed Running Dry | 1.52 (m/s) |
| Speed Running with Lubrication | 4.19 (m/s) |
