SKU: FLN24-PBC

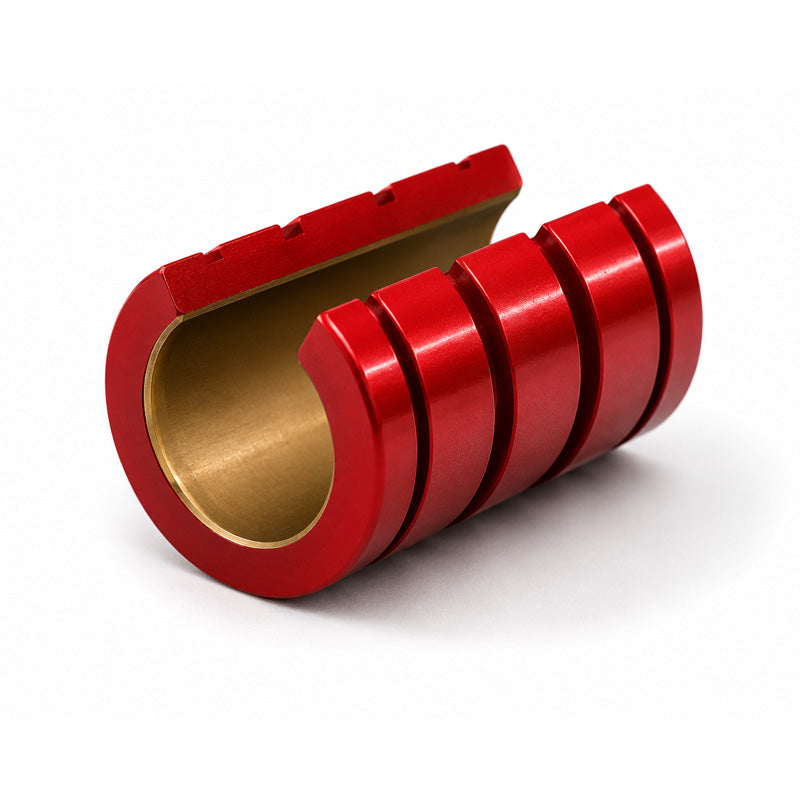

PBC FLN 24 Imperial Open Precision Linear Plain Bearing with Frelon Gold 1.5x2.375x3 inch (Allow 2-3 Days)
PBC FLN 24 Imperial Open Precision Linear Plain Bearing with Frelon Gold 1.5x2.375x3 inch (Allow 2-3 Days)
Regular price
Rs. 18,657.46
Regular price
Sale price
Rs. 18,657.46
Taxes included.
In stock
Price Break
10+
Rs. 16,605.14
19+
Rs. 15,672.27
29+
Rs. 15,485.69
39+
Rs. 15,299.12
49+
Rs. 15,112.54
74+
Rs. 14,925.97
99+
Rs. 13,993.10
199+
Rs. 13,806.52
249+
Rs. 13,619.95
499+
Rs. 13,433.37
999+
Rs. 13,060.22
Description
Description
PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Length:
- 76.2mm = 3 inch
Technical
Technical
| Inside Diameter (A) | 38.1mm = 1.5 (1-1/2) inch |
|---|---|
| Outside Diameter (B) | 60.33mm = 2.375 (2-3/8) inch |
| Width (C) | 76.2mm = 3 inch |
| Nominal Bore Size | 1-1/2 inch |
| Effective Surface Area (Square Inch) | 4.7 inch |
| Max Static Load | 62.67kN |
| Weight | 0.329kg |
