SKU: FLN20-PBC

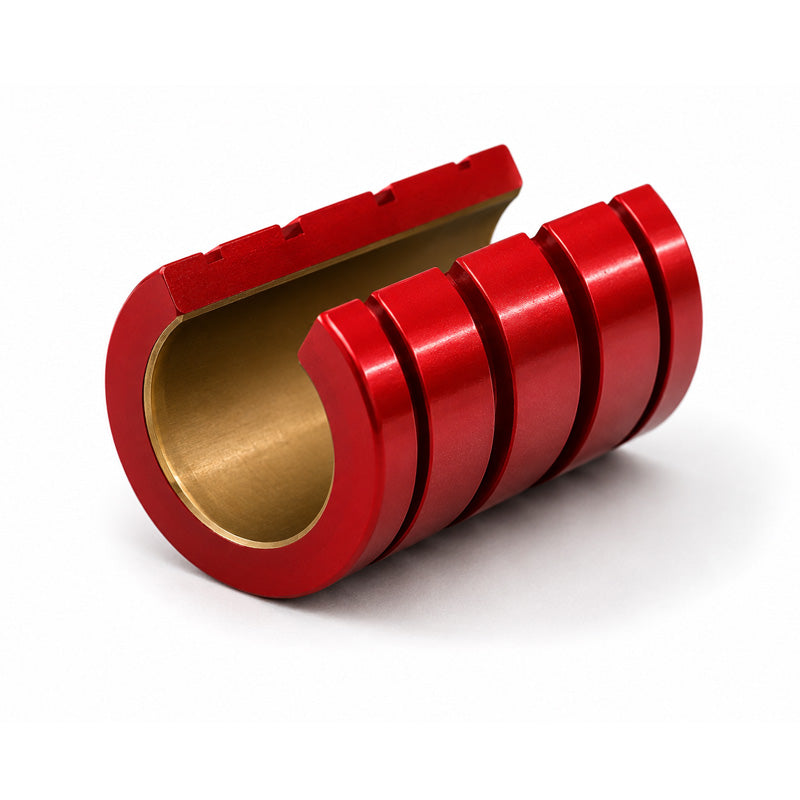

PBC FLN 20 Imperial Open Precision Linear Plain Bearing with Frelon Gold 1.25x2x2.625 inch (Allow 2-3 Days)
PBC FLN 20 Imperial Open Precision Linear Plain Bearing with Frelon Gold 1.25x2x2.625 inch (Allow 2-3 Days)
Regular price
Rs. 16,436.33
Regular price
Sale price
Rs. 16,436.33
Taxes included.
In stock
Price Break
10+
Rs. 14,628.33
19+
Rs. 13,806.52
29+
Rs. 13,642.15
39+
Rs. 13,477.79
49+
Rs. 13,313.43
74+
Rs. 13,149.06
99+
Rs. 12,327.25
199+
Rs. 12,162.88
249+
Rs. 11,998.52
499+
Rs. 11,834.16
999+
Rs. 11,505.43
Description
Description
PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 50.8mm = 2 inch
- Length:
- 66.68mm = 2.625 (2-5/8) inch
Technical
Technical
| Inside Diameter (A) | 31.75mm = 1.25 (1-1/4) inch |
|---|---|
| Outside Diameter (B) | 50.8mm = 2 inch |
| Width (C) | 66.68mm = 2.625 (2-5/8) inch |
| Nominal Bore Size | 1-1/4 inch |
| Effective Surface Area (Square Inch) | 3.43 inch |
| Max Static Load | 48.13kN |
| Weight | 0.208kg |
