SKU: FLN12-PBC

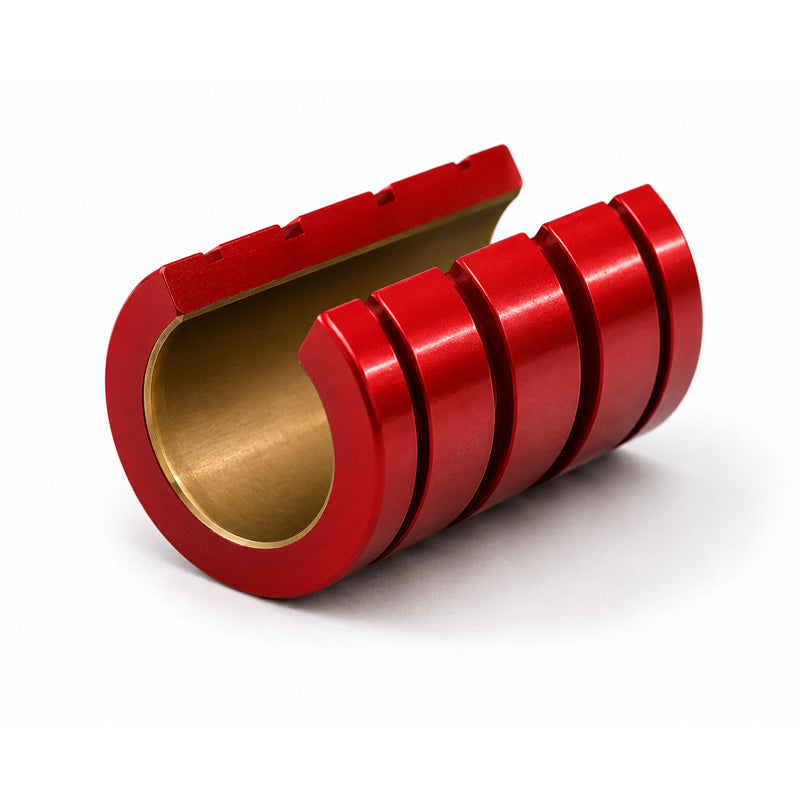

PBC FLN 12 Imperial Open Precision Linear Plain Bearing with Frelon Gold 0.75x1.25x1.625 inch (Allow 2-3 Days)
PBC FLN 12 Imperial Open Precision Linear Plain Bearing with Frelon Gold 0.75x1.25x1.625 inch (Allow 2-3 Days)
Regular price
Rs. 6,929.66
Regular price
Sale price
Rs. 6,929.66
Taxes included.
In stock
Price Break
10+
Rs. 6,167.40
19+
Rs. 5,820.91
29+
Rs. 5,751.62
39+
Rs. 5,682.32
49+
Rs. 5,613.02
74+
Rs. 5,543.73
99+
Rs. 5,197.25
199+
Rs. 5,127.95
249+
Rs. 5,058.65
499+
Rs. 4,989.36
999+
Rs. 4,850.76
Description
Description
PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Length:
- 41.28mm = 1.625 (1-5/8) inch
Technical
Technical
| Inside Diameter (A) | 19.05mm = 0.75 (3/4) inch |
|---|---|
| Outside Diameter (B) | 31.75mm = 1.25 (1-1/4) inch |
| Width (C) | 41.28mm = 1.625 (1-5/8) inch |
| Nominal Bore Size | 3/4 inch |
| Effective Surface Area (Square Inch) | 1.27 inch |
| Max Static Load | 16.93kN |
| Weight | 0.049kg |
