SKU: FLN10-PBC
PBC FLN 10 Imperial Open Precision Linear Plain Bearing with Frelon Gold 0.625x1.125x1.5 inch (Allow 2-3 Days)
PBC FLN 10 Imperial Open Precision Linear Plain Bearing with Frelon Gold 0.625x1.125x1.5 inch (Allow 2-3 Days)
Regular price
Rs. 6,653.19
ex VAT
Regular price
Sale price
Rs. 6,653.19
ex VAT
In stock
Price Break
10+
Rs. 5,921.34
19+
Rs. 5,588.68
29+
Rs. 5,522.15
39+
Rs. 5,455.62
49+
Rs. 5,389.08
74+
Rs. 5,322.55
99+
Rs. 4,989.89
199+
Rs. 4,923.36
249+
Rs. 4,856.83
499+
Rs. 4,790.30
999+
Rs. 4,657.23
Couldn't load pickup availability
Description
Description

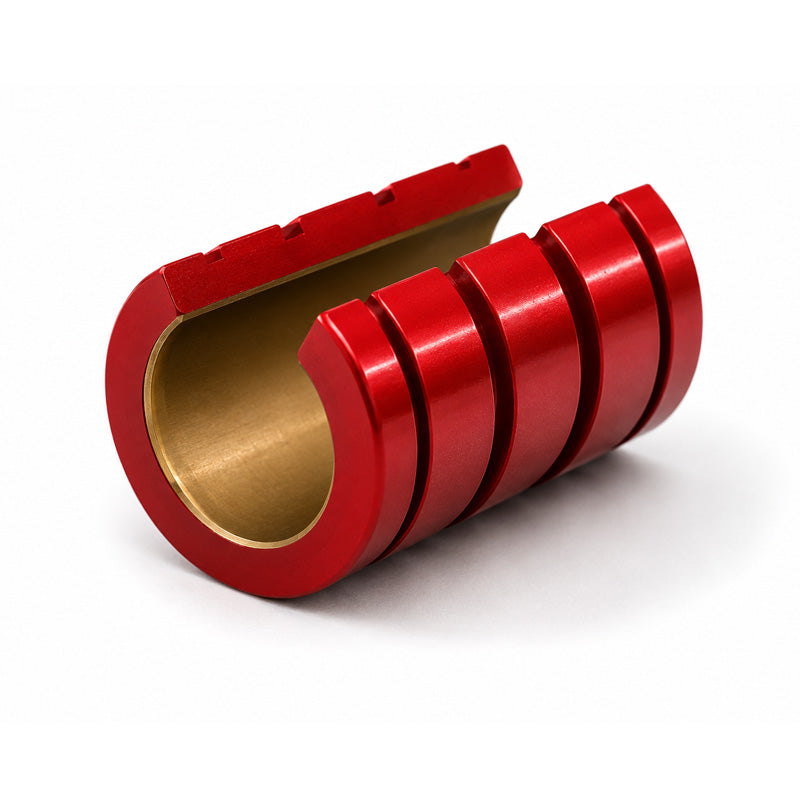

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Length:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical

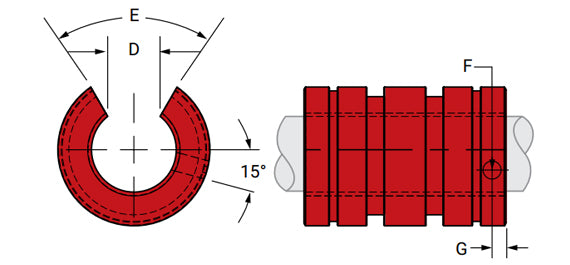

| Inside Diameter (A) | 15.88mm = 0.625 (5/8) inch |
|---|---|
| Outside Diameter (B) | 28.58mm = 1.125 (1-1/8) inch |
| Width (C) | 38.1mm = 1.5 (1-1/2) inch |
| Nominal Bore Size | 5/8 inch |
| Effective Surface Area (Square Inch) | 0.98 inch |
| Max Static Load | 13.07kN |
| Weight | 0.041kg |
