SKU: FLN08-PBC

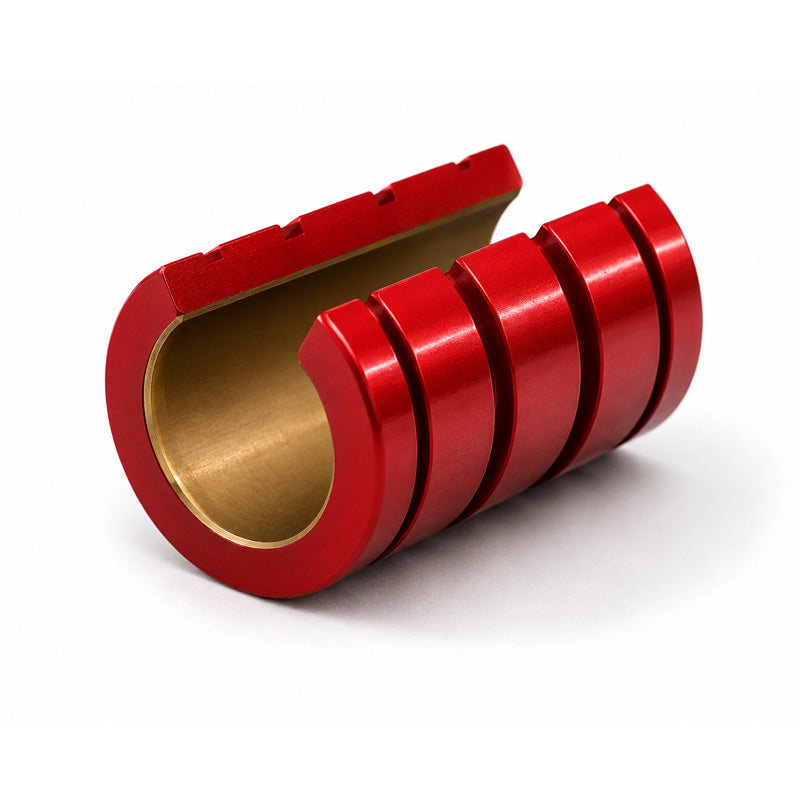

PBC FLN 08 Imperial Open Precision Linear Plain Bearing with Frelon Gold 0.5x0.875x1.25 inch (Allow 2-3 Days)
PBC FLN 08 Imperial Open Precision Linear Plain Bearing with Frelon Gold 0.5x0.875x1.25 inch (Allow 2-3 Days)
Regular price
Rs. 6,130.82
Regular price
Sale price
Rs. 6,130.82
Taxes included.
In stock
Price Break
10+
Rs. 5,456.43
19+
Rs. 5,149.89
29+
Rs. 5,088.58
39+
Rs. 5,027.27
49+
Rs. 4,965.96
74+
Rs. 4,904.66
99+
Rs. 4,598.12
199+
Rs. 4,536.81
249+
Rs. 4,475.50
499+
Rs. 4,414.19
999+
Rs. 4,291.57
Description
Description
PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Length:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical

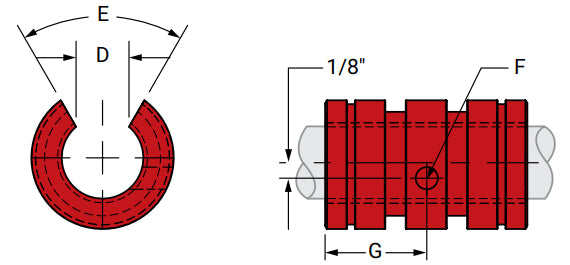

| Inside Diameter (A) | 12.7mm = 0.5 (1/2) inch |
|---|---|
| Outside Diameter (B) | 22.23mm = 0.875 (7/8) inch |
| Width (C) | 31.75mm = 1.25 (1-1/4) inch |
| Nominal Bore Size | 1/2 inch |
| Effective Surface Area (Square Inch) | 0.65 inch |
| Max Static Load | 8.67kN |
| Weight | 0.019kg |
