SKU: FLN04-PBC

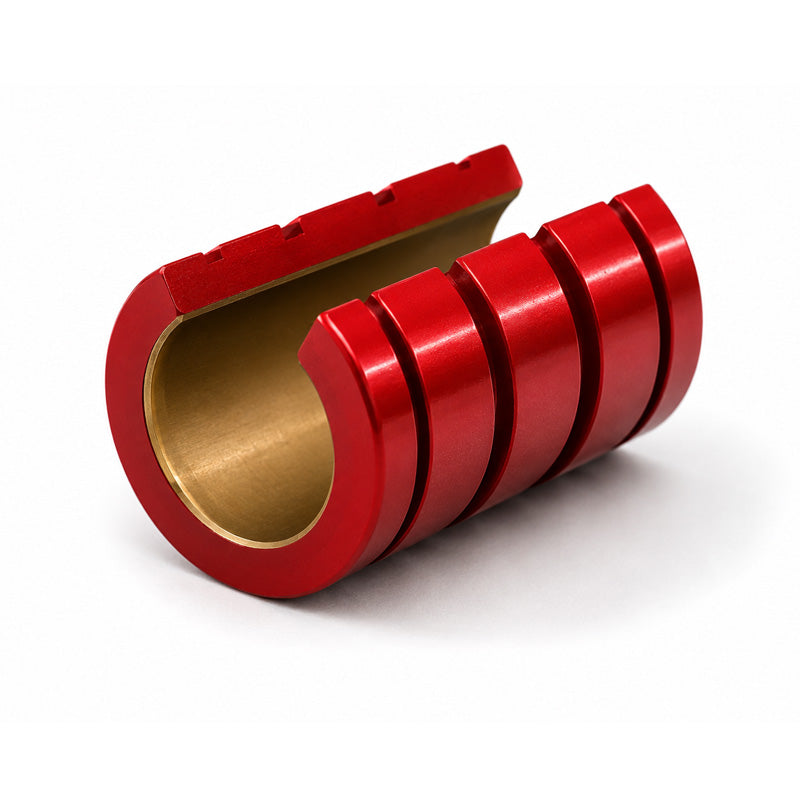

PBC FLN 04 Imperial Open Precision Linear Plain Bearing with Frelon Gold 0.25x0.5x0.75 inch (Allow 2-3 Days)
PBC FLN 04 Imperial Open Precision Linear Plain Bearing with Frelon Gold 0.25x0.5x0.75 inch (Allow 2-3 Days)
Regular price
Rs. 6,397.10
Regular price
Sale price
Rs. 6,397.10
Taxes included.
In stock
Price Break
10+
Rs. 5,693.42
19+
Rs. 5,373.56
29+
Rs. 5,309.59
39+
Rs. 5,245.62
49+
Rs. 5,181.65
74+
Rs. 5,117.68
99+
Rs. 4,797.83
199+
Rs. 4,733.85
249+
Rs. 4,669.88
499+
Rs. 4,605.91
999+
Rs. 4,477.97
Description
Description
PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 6.35mm = 0.25 (1/4) inch
- Outside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Length:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Inside Diameter (A) | 6.35mm = 0.25 (1/4) inch |
|---|---|
| Outside Diameter (B) | 12.7mm = 0.5 (1/2) inch |
| Width (C) | 19.05mm = 0.75 (3/4) inch |
| Nominal Bore Size | 1/4 inch |
| Effective Surface Area (Square Inch) | 0.2 inch |
| Max Static Load | 2.67kN |
| Weight | 0.004kg |
