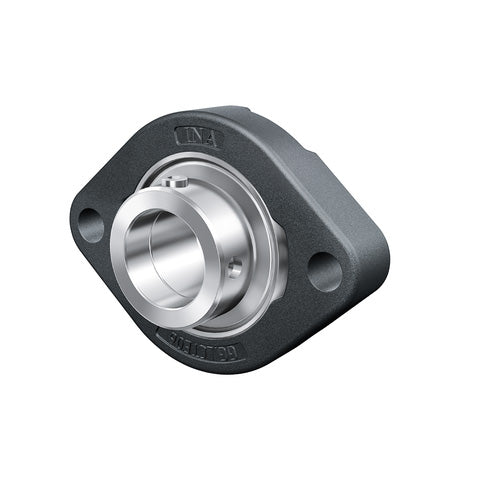

INA FLCTE17XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 17mm Bore
INA FLCTE17XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 17mm Bore
Regular price
Rs. 3,761.19
Regular price
Sale price
Rs. 3,761.19
Taxes included.
In stock
Price Break
10+
Rs. 3,347.46
19+
Rs. 3,159.40
29+
Rs. 3,121.79
39+
Rs. 3,084.18
49+
Rs. 3,046.56
74+
Rs. 3,008.95
99+
Rs. 2,820.89
199+
Rs. 2,783.28
249+
Rs. 2,745.67
499+
Rs. 2,708.06
999+
Rs. 2,632.83
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. Note: This housing unit does not have a relubrication facility. Benefits: Eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 17mm
- Style:
- FLCTE
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| d | 17mm |
|---|---|
| H | 81mm |
| U | 30.5mm |
| A1 | 15mm |
| A2 | 8.4mm |
| B1 | 28.6mm |
| d3 max | 28.4mm |
| J | 63.5mm |
| L | 58.7mm |
| N | 6.6mm |
| Mass | 0.3 kg |
| Basic dynamic load rating Cr | 10100 N |
| Basic static load rating Cor | 4750 N |
| Designation of housing | LCTE03 |
| Designation of bearing | RAE17-XL-NPP-B |
