SKU: FL64-PBC

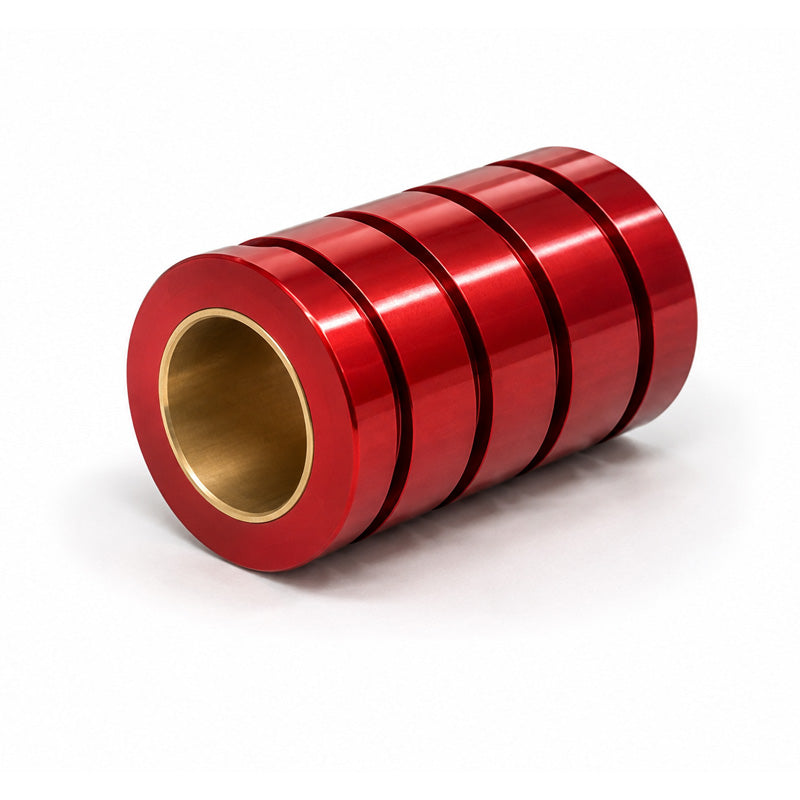

PBC FL 64 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 4x6x8 inch (Allow 2-3 Days)
PBC FL 64 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 4x6x8 inch (Allow 2-3 Days)
Regular price
Rs. 106,649.63
ex VAT
Regular price
Sale price
Rs. 106,649.63
ex VAT
In stock
Price Break
10+
Rs. 94,918.17
19+
Rs. 89,585.69
29+
Rs. 88,519.19
39+
Rs. 87,452.70
49+
Rs. 86,386.20
74+
Rs. 85,319.70
99+
Rs. 79,987.22
199+
Rs. 78,920.73
249+
Rs. 77,854.23
499+
Rs. 76,787.73
999+
Rs. 74,654.74
Couldn't load pickup availability
Description
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Outside Diameter:
- 152.4mm = 6 inch
- Length:
- 203.2mm = 8 inch
Technical
Technical
| Inside Diameter | 101.6mm = 4 inch |
|---|---|
| Outside Diameter | 152.4mm = 6 inch |
| Width | 203.2mm = 8 inch |
| Nominal Bore Size | 4 inch |
| Effective Surface Area (Square Inch) | 33.5kg |
| Max Static Load | 446.67kN |
| Weight | 5.368kg |
