SKU: FL40-PBC

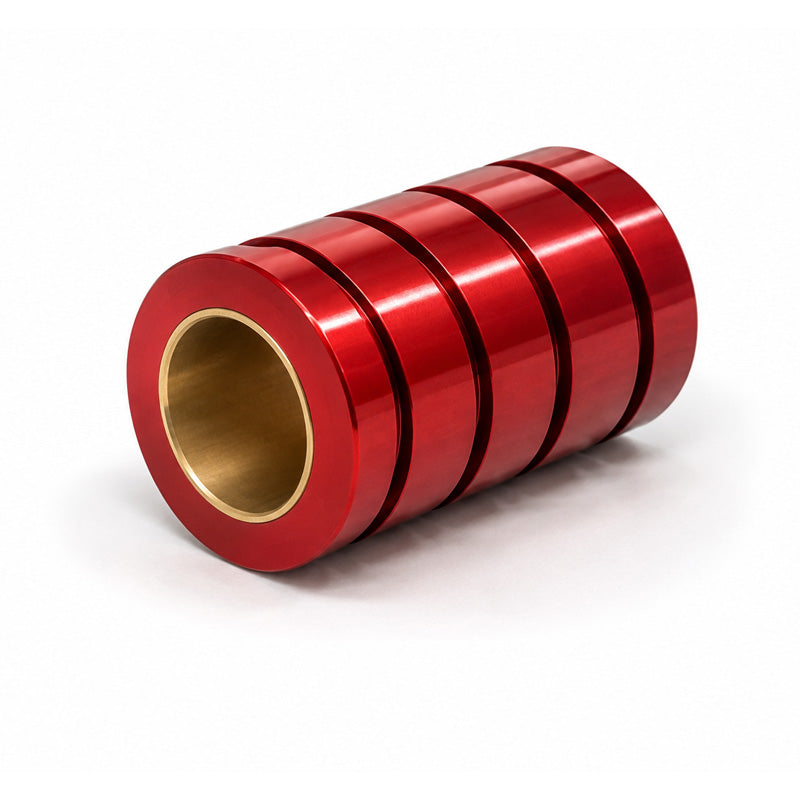

PBC FL 40 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 2.5x3.75x5 inch (Allow 2-3 Days)
PBC FL 40 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 2.5x3.75x5 inch (Allow 2-3 Days)
Regular price
Rs. 41,668.83
Regular price
Sale price
Rs. 41,668.83
Taxes included.
In stock
Price Break
10+
Rs. 37,085.26
19+
Rs. 35,001.82
29+
Rs. 34,585.13
39+
Rs. 34,168.44
49+
Rs. 33,751.75
74+
Rs. 33,335.06
99+
Rs. 31,251.62
199+
Rs. 30,834.93
249+
Rs. 30,418.25
499+
Rs. 30,001.56
999+
Rs. 29,168.18
Description
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Outside Diameter:
- 95.25mm = 3.75 (3-3/4) inch
- Length:
- 127mm = 5 inch
Technical
Technical
| Inside Diameter | 63.5mm = 2.5 (2-1/2) inch |
|---|---|
| Outside Diameter | 95.25mm = 3.75 (3-3/4) inch |
| Width | 127mm = 5 inch |
| Nominal Bore Size | 2-1/2 inch |
| Effective Surface Area (Square Inch) | 13kg |
| Max Static Load | 173.33kN |
| Weight | 1.277kg |
