SKU: FL32-PBC

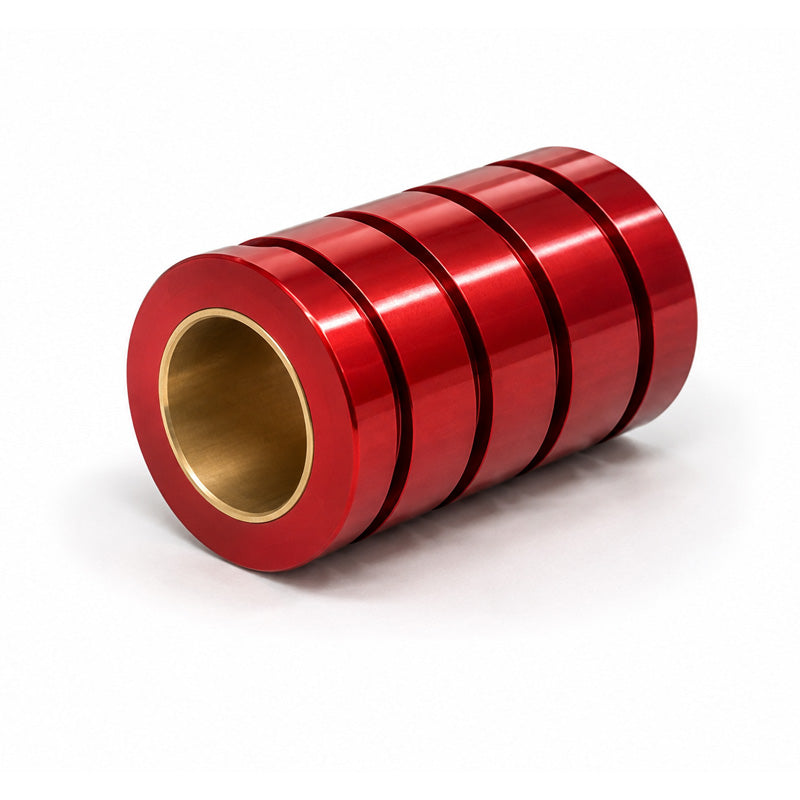

PBC FL 32 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 2x3x4 inch (Allow 2-3 Days)
PBC FL 32 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 2x3x4 inch (Allow 2-3 Days)
Regular price
Rs. 25,523.94
ex VAT
Regular price
Sale price
Rs. 25,523.94
ex VAT
In stock
Price Break
10+
Rs. 22,716.31
19+
Rs. 21,440.11
29+
Rs. 21,184.87
39+
Rs. 20,929.63
49+
Rs. 20,674.39
74+
Rs. 20,419.15
99+
Rs. 19,142.96
199+
Rs. 18,887.72
249+
Rs. 18,632.48
499+
Rs. 18,377.24
999+
Rs. 17,866.76
Couldn't load pickup availability
Description
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 76.2mm = 3 inch
- Length:
- 101.6mm = 4 inch
Technical
Technical
| Inside Diameter | 50.8mm = 2 inch |
|---|---|
| Outside Diameter | 76.2mm = 3 inch |
| Width | 101.6mm = 4 inch |
| Nominal Bore Size | 2 inch |
| Effective Surface Area (Square Inch) | 8.35kg |
| Max Static Load | 111.33kN |
| Weight | 0.654kg |
