SKU: FL10-PBC

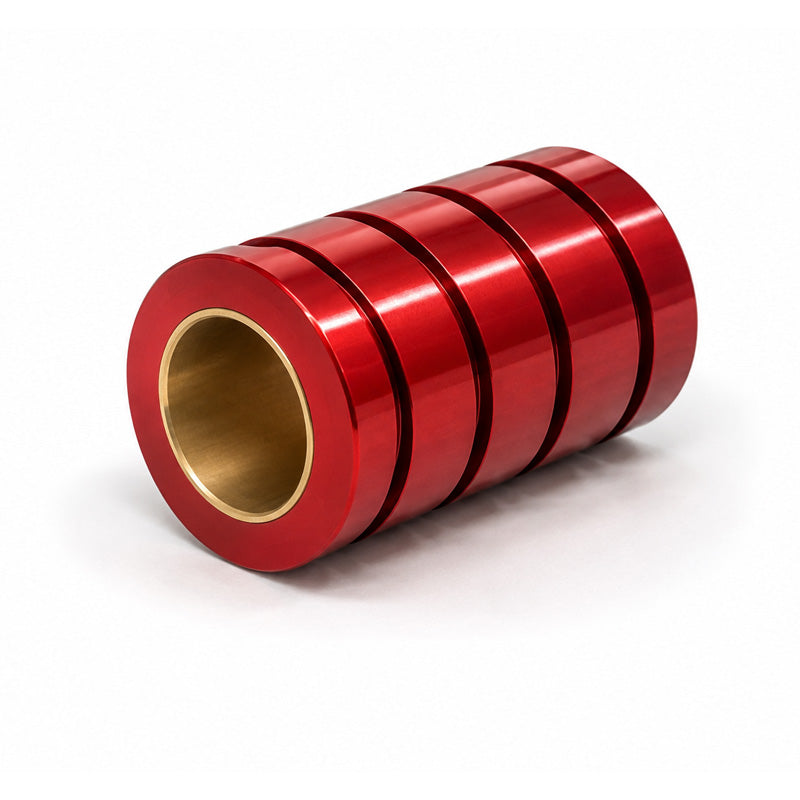

PBC FL 10 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 0.625x1.125x1.5 inch (Allow 2-3 Days)
PBC FL 10 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 0.625x1.125x1.5 inch (Allow 2-3 Days)
Regular price
Rs. 5,064.42
Regular price
Sale price
Rs. 5,064.42
Taxes included.
In stock
Price Break
10+
Rs. 4,507.33
19+
Rs. 4,254.11
29+
Rs. 4,203.47
39+
Rs. 4,152.82
49+
Rs. 4,102.18
74+
Rs. 4,051.54
99+
Rs. 3,798.32
199+
Rs. 3,747.67
249+
Rs. 3,697.03
499+
Rs. 3,646.38
999+
Rs. 3,545.09
Description
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Length:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Inside Diameter | 15.88mm = 0.625 (5/8) inch |
|---|---|
| Outside Diameter | 28.58mm = 1.125 (1-1/8) inch |
| Width | 38.1mm = 1.5 (1-1/2) inch |
| Nominal Bore Size | 5/8 inch |
| Effective Surface Area (Square Inch) | 0.98kg |
| Max Static Load | 13.07kN |
| Weight | 0.041kg |
