SKU: FL04-PBC

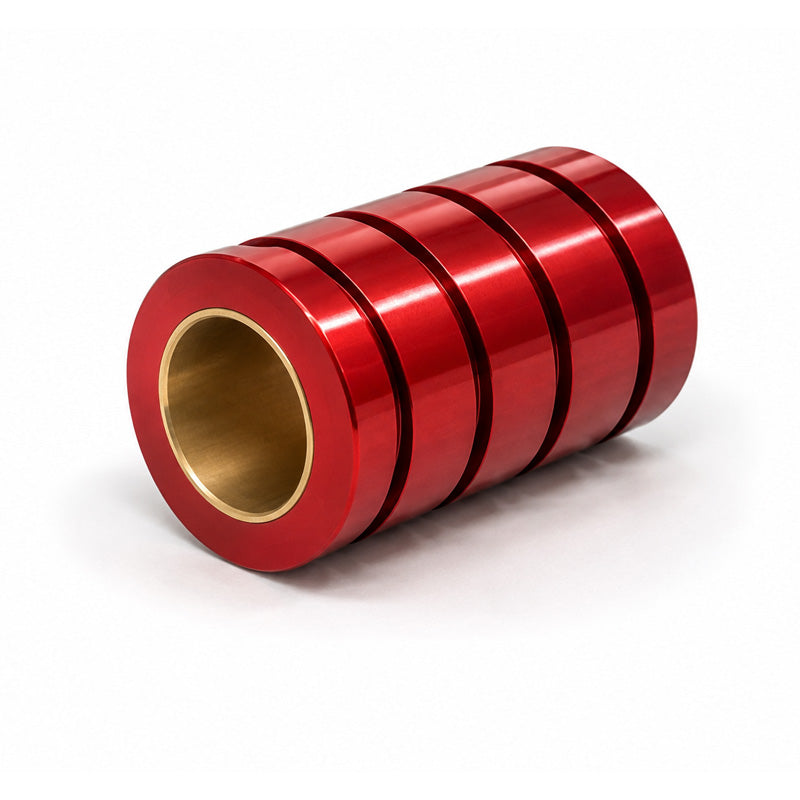

PBC FL 04 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 0.25x0.5x0.75 inch (Allow 2-3 Days)
PBC FL 04 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 0.25x0.5x0.75 inch (Allow 2-3 Days)
Regular price
Rs. 4,146.53
Regular price
Sale price
Rs. 4,146.53
Taxes included.
In stock
Price Break
10+
Rs. 3,690.41
19+
Rs. 3,483.09
29+
Rs. 3,441.62
39+
Rs. 3,400.15
49+
Rs. 3,358.69
74+
Rs. 3,317.22
99+
Rs. 3,109.90
199+
Rs. 3,068.43
249+
Rs. 3,026.97
499+
Rs. 2,985.50
999+
Rs. 2,902.57
Description
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 6.35mm = 0.25 (1/4) inch
- Outside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Length:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical

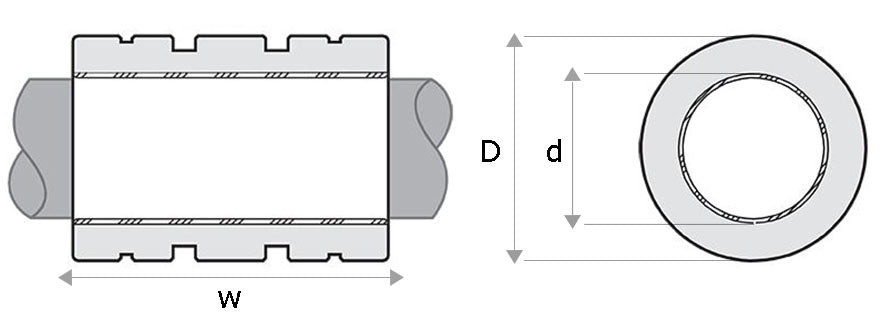

| Inside Diameter | 6.35mm = 0.25 (1/4) inch |
|---|---|
| Outside Diameter | 12.7mm = 0.5 (1/2) inch |
| Width | 19.05mm = 0.75 (3/4) inch |
| Nominal Bore Size | 1/4 inch |
| Effective Surface Area (Square Inch) | 0.2kg |
| Max Static Load | 2.67kN |
| Weight | 0.004kg |
