SKU: FF3525

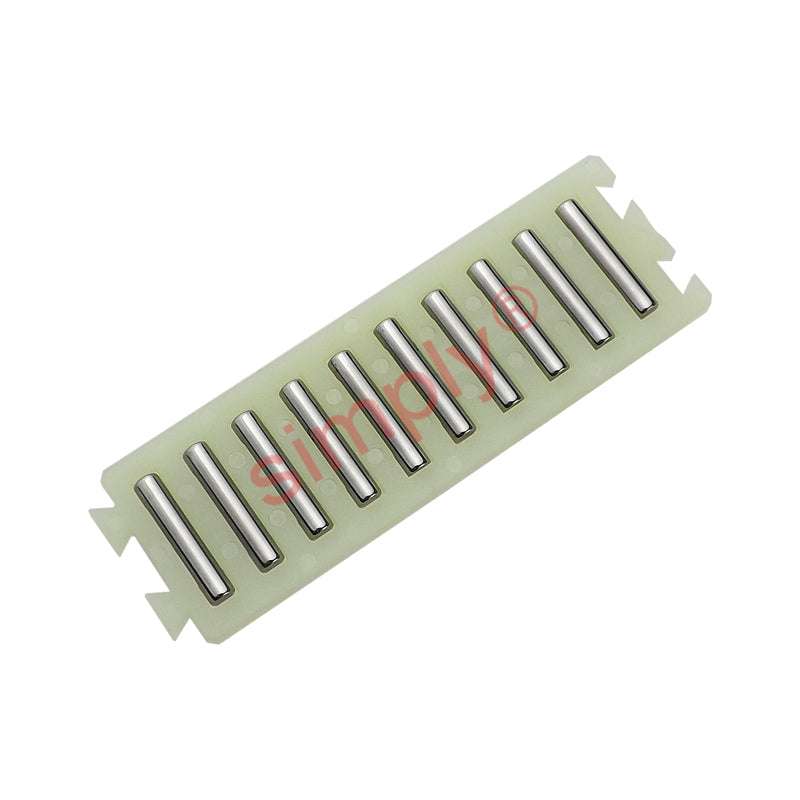

INA FF3525 Needle Roller Flat Cage 25mm Width x 75mm Length
INA FF3525 Needle Roller Flat Cage 25mm Width x 75mm Length
Regular price
Rs. 696.42
Regular price
Sale price
Rs. 696.42
Taxes included.
In stock
Price Break
10+
Rs. 619.81
19+
Rs. 584.99
29+
Rs. 578.03
39+
Rs. 571.06
49+
Rs. 564.10
74+
Rs. 557.14
99+
Rs. 522.32
199+
Rs. 515.35
249+
Rs. 508.39
499+
Rs. 501.42
999+
Rs. 487.49
Description
Description
Needle Roller Flat Cages: Needle roller flat cages made up of numerous rolling elements. This ensures very high load capacities and precision. As the needle rollers are installed in a flat cage, needle roller flat cages use a small amount of space.
- Brand / Quality:
- INA - High Quality
- Width:
- 25mm
- Length:
- 75mm
Technical
Technical
| --- | Main Dimensions |
|---|---|
| l<sub>ke</sub> (Length) | 75mm |
| D<sub>W</sub> (Rolling element diameter) | 3.5mm |
| B (Width) | 25mm |
| T (Cage Thickness) | 3mm |
| C (Dynamic load capacity) | 64.7 kN |
| C<sub>0</sub> (Static load capacity) | 177.3 kN |
| Weight | 0.0045kg |
| --- | Mounting Dimensions |
| E<sub>B</sub> | 25.4mm (+0.2 Tolerance) |
| E<sub>B1</sub> | 18mm |
| E<sub>H</sub> | 3.2mm |
| --- | Other |
| L<sub>W</sub> (Length rolling element) | 17.8mm |
| a<sub>k</sub> | 3mm |
| Z<sub>e</sub> (Number of rolling elements per row) | 10 |
| Associated Rail | J5530, S5530 |
