SKU: FF3020

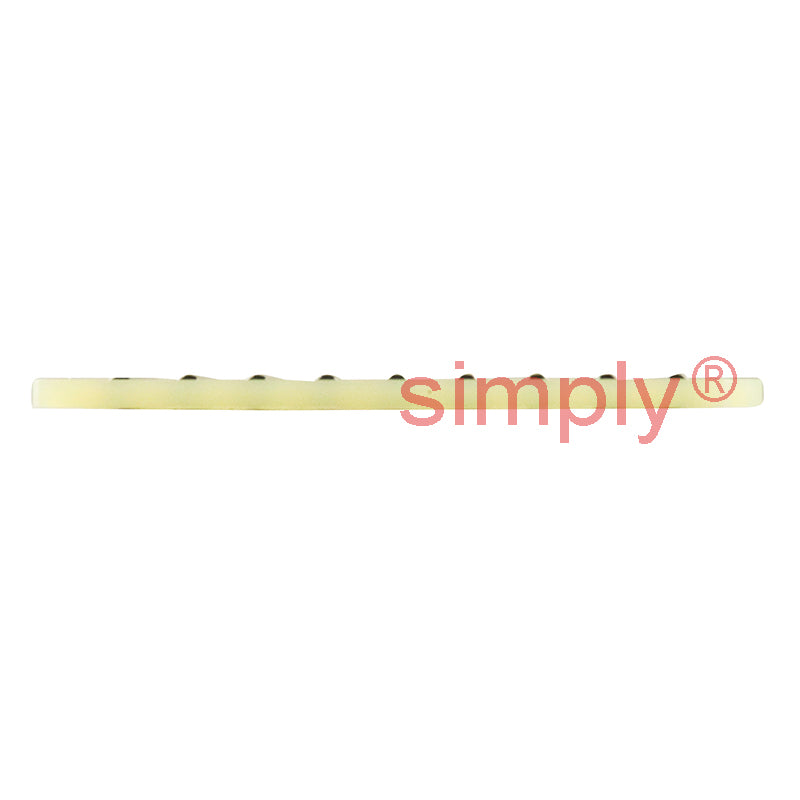

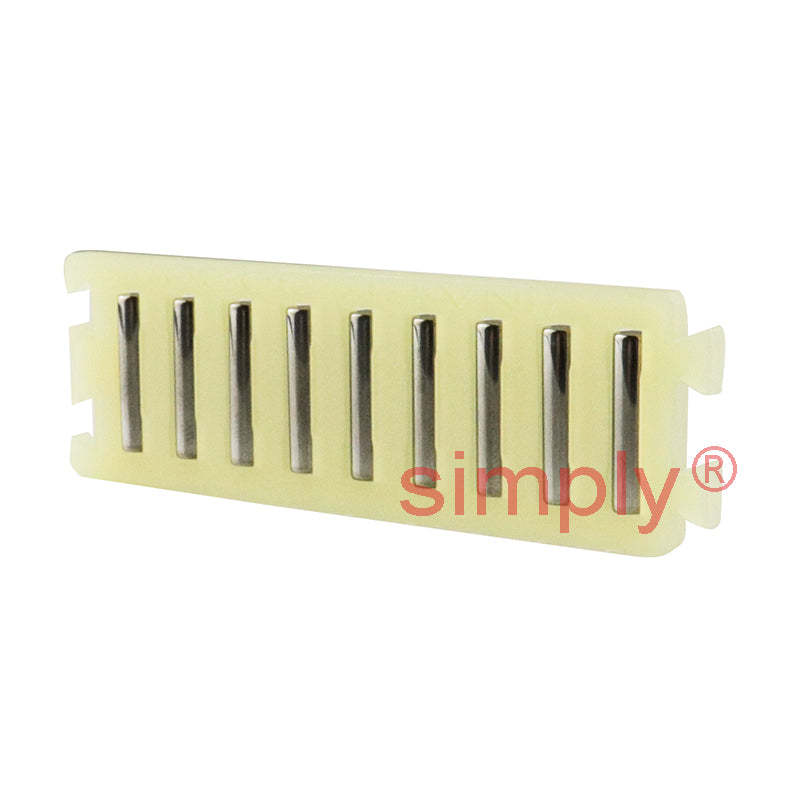

INA FF3020 Needle Roller Flat Cage 20mm Width x 60mm Length
INA FF3020 Needle Roller Flat Cage 20mm Width x 60mm Length
Regular price
Rs. 541.27
ex VAT
Regular price
Sale price
Rs. 541.27
ex VAT
In stock
Price Break
10+
Rs. 481.73
19+
Rs. 454.67
29+
Rs. 449.25
39+
Rs. 443.84
49+
Rs. 438.43
74+
Rs. 433.02
99+
Rs. 405.95
199+
Rs. 400.54
249+
Rs. 395.13
499+
Rs. 389.71
999+
Rs. 378.89
Couldn't load pickup availability
Description
Description
Needle Roller Flat Cages: Needle roller flat cages made up of numerous rolling elements. This ensures very high load capacities and precision. As the needle rollers are installed in a flat cage, needle roller flat cages use a small amount of space.
- Brand / Quality:
- INA - High Quality
- Width:
- 20mm
- Length:
- 60mm
Technical
Technical
| --- | Main Dimensions |
|---|---|
| l<sub>ke</sub> (Length) | 60mm |
| D<sub>W</sub> (Rolling element diameter) | 3mm |
| B (Width) | 20mm |
| T (Cage Thickness) | 2.5mm |
| C (Dynamic load capacity) | 47.8 kN |
| C<sub>0</sub> (Static load capacity) | 133.2 kN |
| Weight | 0.089kg |
| --- | Mounting Dimensions |
| E<sub>B</sub> | 20.4mm (+0.2 Tolerance) |
| E<sub>B1</sub> | 14mm |
| E<sub>H</sub> | 2.7mm |
| --- | Other |
| L<sub>W</sub> (Length rolling element) | 13.8mm |
| a<sub>k</sub> | 3mm |
| Z<sub>e</sub> (Number of rolling elements per row) | 9 |
| Associated Rail | J5030, S5030 |
