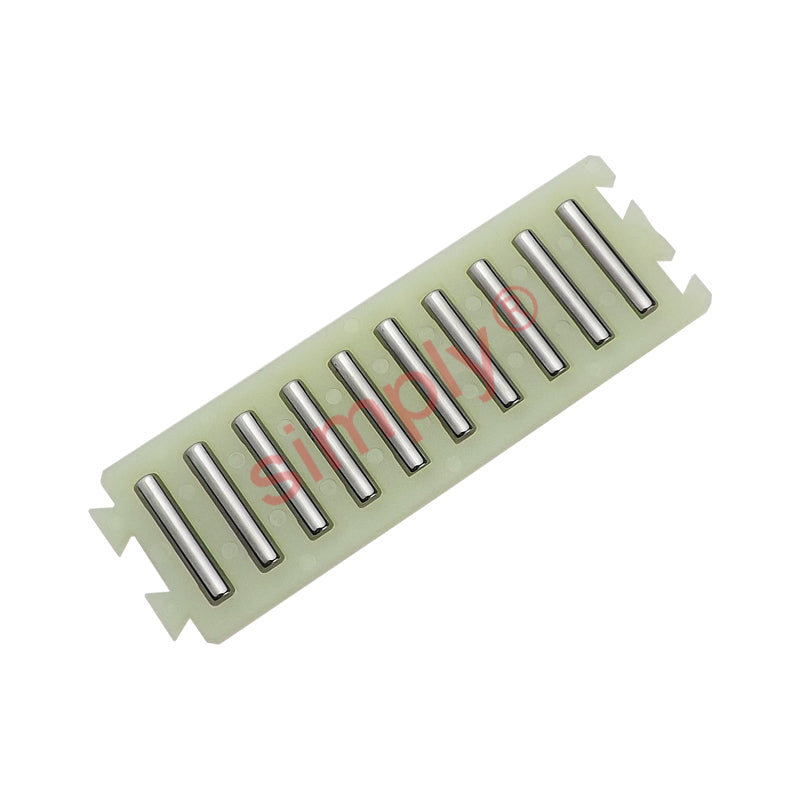

INA FF2010 Needle Roller Flat Cage 10mm Width x 32mm Length
INA FF2010 Needle Roller Flat Cage 10mm Width x 32mm Length
Regular price
Rs. 490.31
Regular price
Sale price
Rs. 490.31
Taxes included.
In stock
Price Break
10+
Rs. 436.38
19+
Rs. 411.86
29+
Rs. 406.96
39+
Rs. 402.05
49+
Rs. 397.15
74+
Rs. 392.25
99+
Rs. 367.73
199+
Rs. 362.83
249+
Rs. 357.93
499+
Rs. 353.02
999+
Rs. 343.22
Description
Description
Needle Roller Flat Cages: Needle roller flat cages made up of numerous rolling elements. This ensures very high load capacities and precision. As the needle rollers are installed in a flat cage, needle roller flat cages use a small amount of space.
- Brand / Quality:
- INA - High Quality
- Width:
- 10mm
- Length:
- 32mm
Technical
Technical

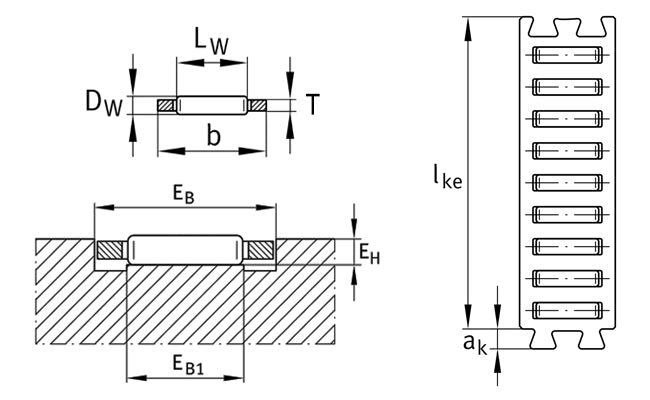

| --- | Main Dimensions |
|---|---|
| l<sub>ke</sub> (Length) | 32mm |
| D<sub>W</sub> (Rolling element diameter) | 2mm |
| B (Width) | 10mm |
| T (Cage Thickness) | 1.5mm |
| C (Dynamic load capacity) | 21.3 kN |
| C<sub>0</sub> (Static load capacity) | 61.9 kN |
| Weight | 0.02kg |
| --- | Mounting Dimensions |
| E<sub>B</sub> | 10.3mm (+0.2 Tolerance) |
| E<sub>B1</sub> | 7mm |
| E<sub>H</sub> | 1.7mm |
| --- | Other |
| L<sub>W</sub> (Length rolling element) | 6.8mm |
| a<sub>k</sub> | 2mm |
| Z<sub>e</sub> (Number of rolling elements per row) | 7 |
| Associated Rail | J3525, S3525 |
