SKU: FC7/8-RHP

RHP FC7/8-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 7/8 inch Insert

RHP FC7/8-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 7/8 inch Insert
Rs. 6,059.66 ex VAT
Rs. 6,059.66 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 5,393.10
19+ Rs. 5,090.11
29+ Rs. 5,029.52
39+ Rs. 4,968.92
49+ Rs. 4,908.32
74+ Rs. 4,847.73
99+ Rs. 4,544.75
199+ Rs. 4,484.15
249+ Rs. 4,423.55
499+ Rs. 4,362.96
999+ Rs. 4,241.76
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

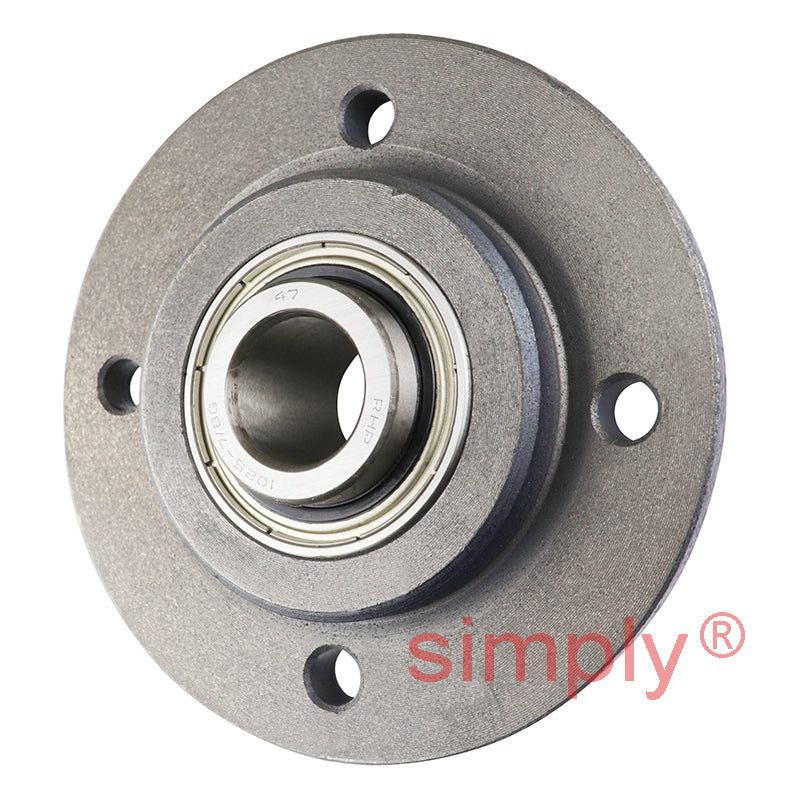

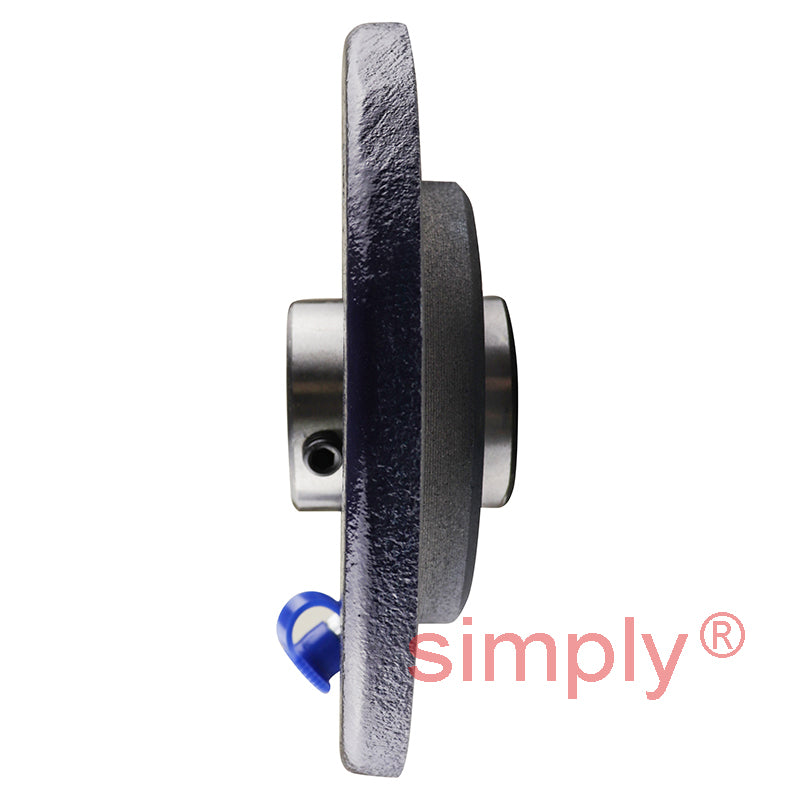

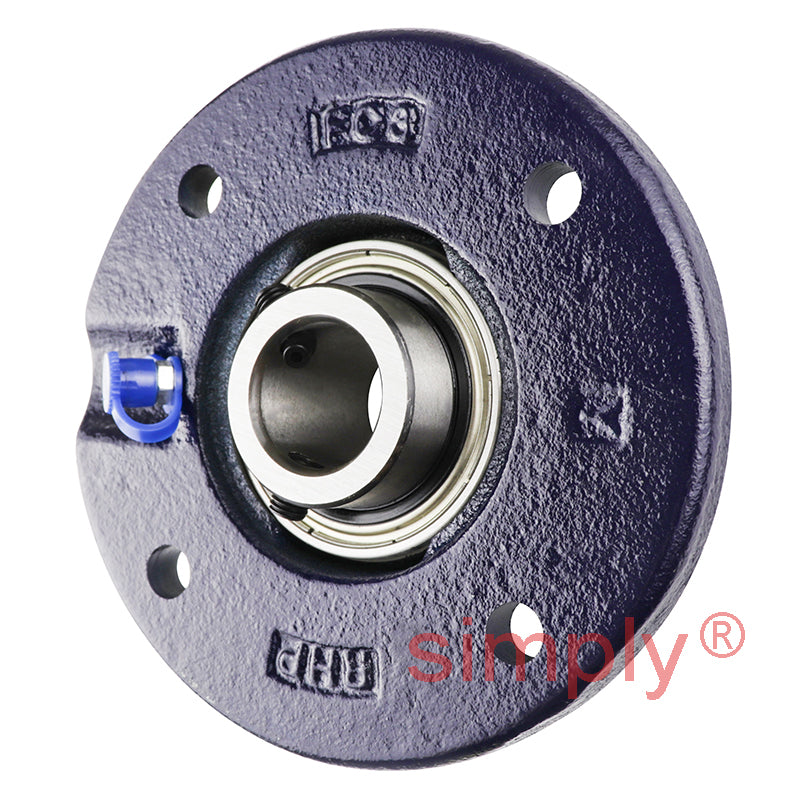

RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
22.23mm = 0.875 (7/8) inch
Style:
FC
Pitch Circle Diameter:
89.99mm = 3.543 inch
Technical
Bore 7/8 inch
L 4.528 inch
H 2.756 inch
J 3.543 inch
G 0.3125 inch
A 0.748 inch
A1 0.683 inch
A5 0.354 inch
B 1.343 inch
s 0.564 inch
d1 1.339 inch
Dynamic load 14000 N
Static load 7880 N
Rec max speed 6250 rpm
Weight 0.9 kg
Insert <a href="advanced_search_result.php?keywords=1025-7/8G+insonly">1025-7/8G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
