SKU: FC50-RHP

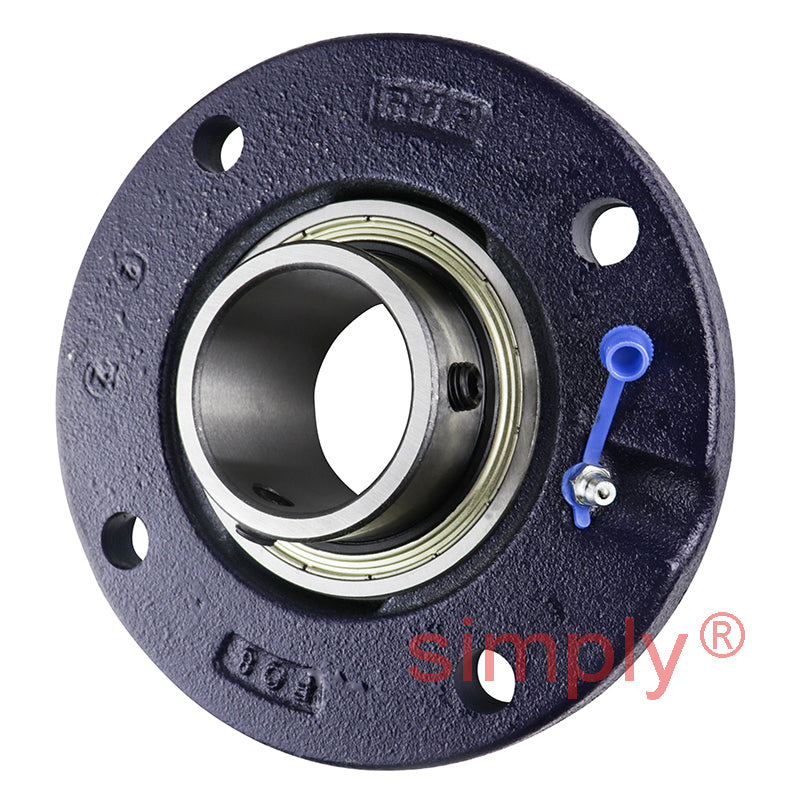

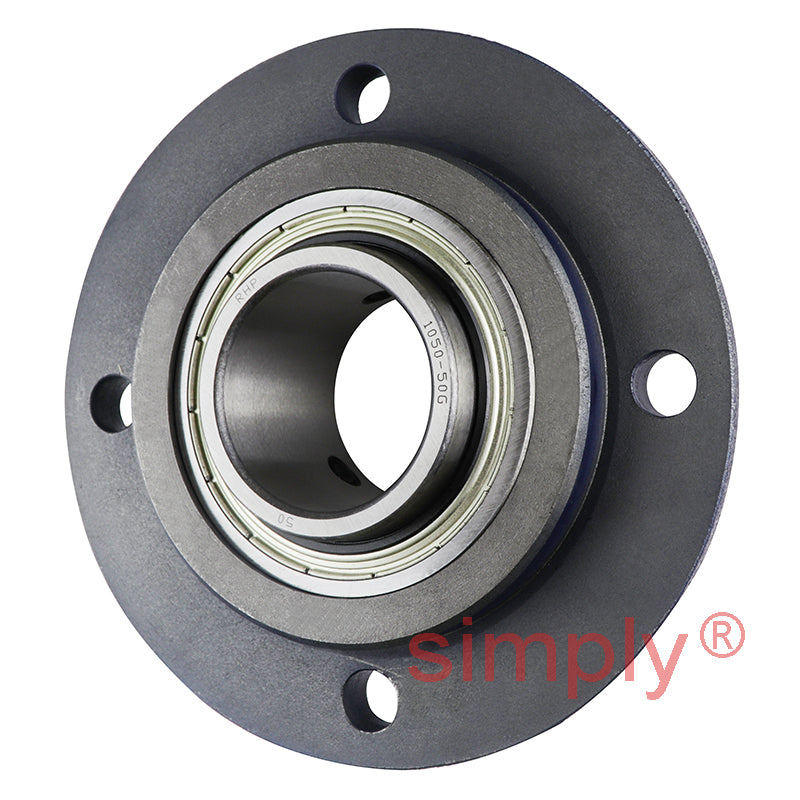

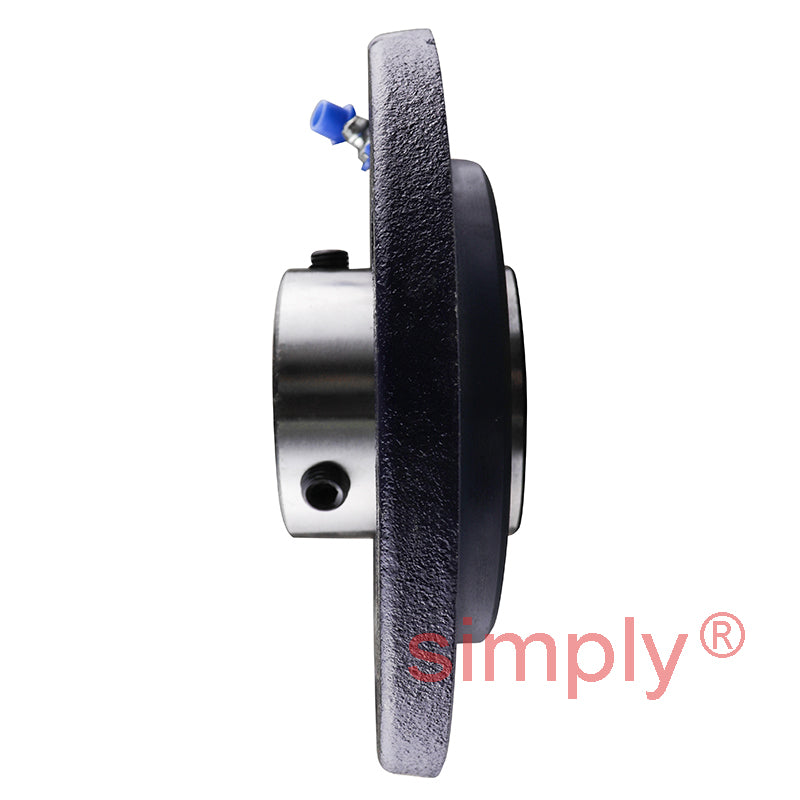

RHP FC50-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert

RHP FC50-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
Rs. 8,056.75 ex VAT
Rs. 8,056.75 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 7,170.51
19+ Rs. 6,767.67
29+ Rs. 6,687.10
39+ Rs. 6,606.54
49+ Rs. 6,525.97
74+ Rs. 6,445.40
99+ Rs. 6,042.56
199+ Rs. 5,962.00
249+ Rs. 5,881.43
499+ Rs. 5,800.86
999+ Rs. 5,639.73
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Style:
FC
Pitch Circle Diameter:
135mm
Technical
Bore 50mm
L 165mm
H 110mm
J 135mm
G 12mm
A 25mm
A1 31.52mm
A5 13mm
B 51.6mm
s 19.04mm
d1 62.2mm
Dynamic load 35000 N
Static load 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1050-50G+insonly">1050-50G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
