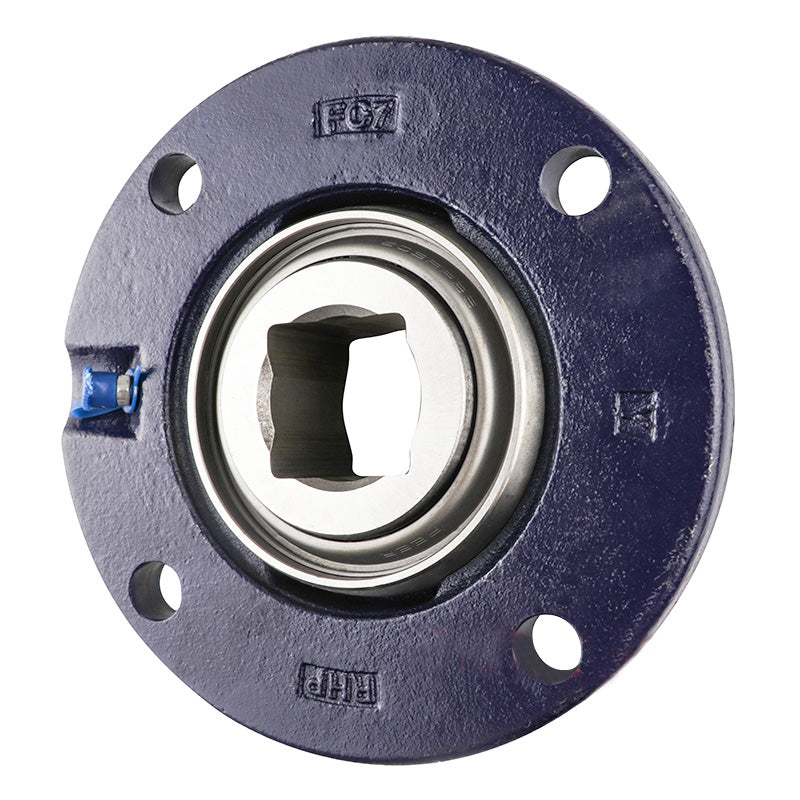

RHP FC45 Four Bolt Round Cast Iron Flanged Bearing Unit and W209PPB5 Insert
RHP FC45 Four Bolt Round Cast Iron Flanged Bearing Unit and W209PPB5 Insert
Regular price
Rs. 16,954.38
ex VAT
Regular price
Sale price
Rs. 16,954.38
ex VAT
In stock
Price Break
10+
Rs. 15,089.40
19+
Rs. 14,241.68
29+
Rs. 14,072.14
39+
Rs. 13,902.59
49+
Rs. 13,733.05
74+
Rs. 13,563.50
99+
Rs. 12,715.79
199+
Rs. 12,546.24
249+
Rs. 12,376.70
499+
Rs. 12,207.15
999+
Rs. 11,868.07
Couldn't load pickup availability
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- FC
- Pitch Circle Diameter:
- 130mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 155mm |
| H | 105mm |
| J | 130mm |
| G | 12mm |
| A | 25mm |
| A1 | 28.18mm |
| A5 | 12mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 57.3mm |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=W209PPB5+insonly">W209PPB5 Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
