• RHP FC45DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
1 1

SKU: FC45DEC-RHP

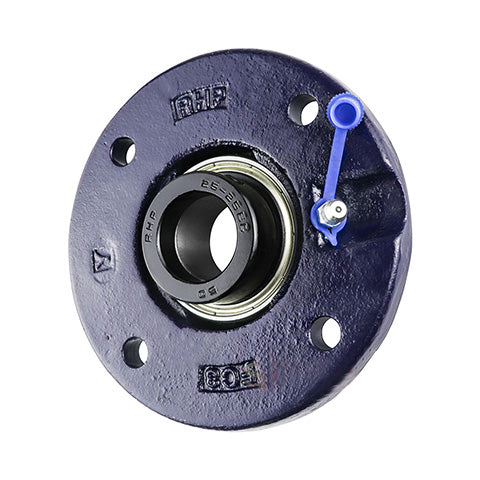

RHP FC45DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert

RHP FC45DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
Rs. 12,513.83
Rs. 12,513.83
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 11,137.31
19+ Rs. 10,511.62
29+ Rs. 10,386.48
39+ Rs. 10,261.34
49+ Rs. 10,136.20
74+ Rs. 10,011.06
99+ Rs. 9,385.37
199+ Rs. 9,260.23
249+ Rs. 9,135.10
499+ Rs. 9,009.96
999+ Rs. 8,759.68
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Style:
FC
Pitch Circle Diameter:
130mm

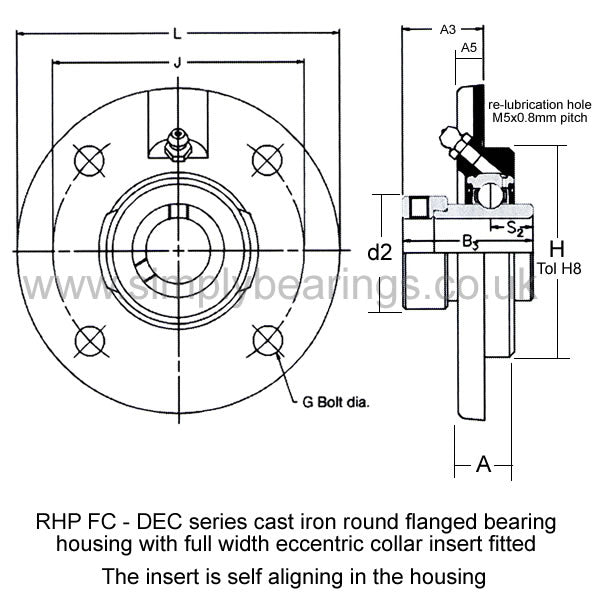

Technical
Bore 45mm
L 155mm
H 105mm
J 130mm
G 12mm
A 25mm
A3 32.88mm
A5 12mm
B3 56.34mm
s2 21.46mm
d2 63.5mm
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3700 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1045-45DECG+insonly">1045-45DECG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
