SKU: FC35A-RHP

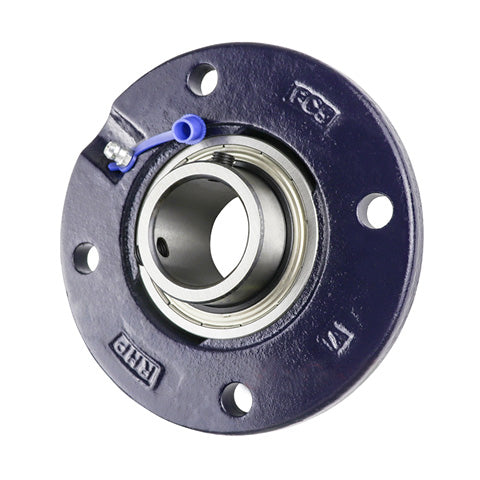

RHP FC35A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
Regular price
Rs. 7,787.01
ex VAT
Regular price
Sale price
Rs. 7,787.01
ex VAT
In stock
Price Break
10+
Rs. 6,930.44
19+
Rs. 6,541.09
29+
Rs. 6,463.22
39+
Rs. 6,385.35
49+
Rs. 6,307.48
74+
Rs. 6,229.61
99+
Rs. 5,840.26
199+
Rs. 5,762.39
249+
Rs. 5,684.52
499+
Rs. 5,606.65
999+
Rs. 5,450.91
Couldn't load pickup availability
Description
Description
|
RHP FC A Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- FC
- Pitch Circle Diameter:
- 110mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 135mm |
| H | 90mm |
| J | 110mm |
| G | 10mm |
| A | 20.5mm |
| A1 | 24.4mm |
| A5 | 10mm |
| B1 | 34.9mm |
| s1 | 9.55mm |
| d1 | 46.69mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-35AG+insonly">1235-35AG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
