SKU: FC30EC-RHP

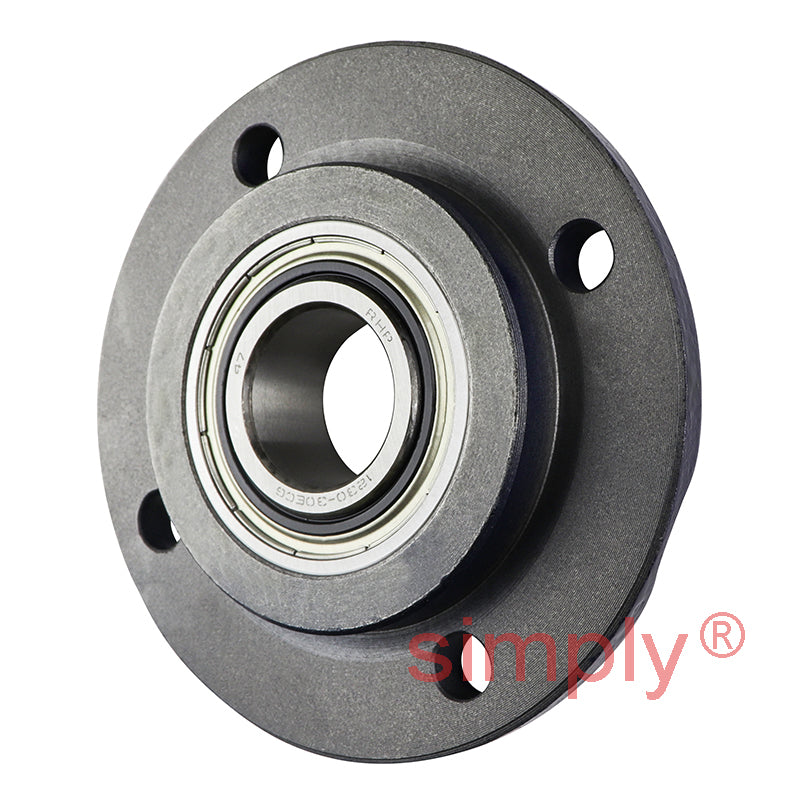

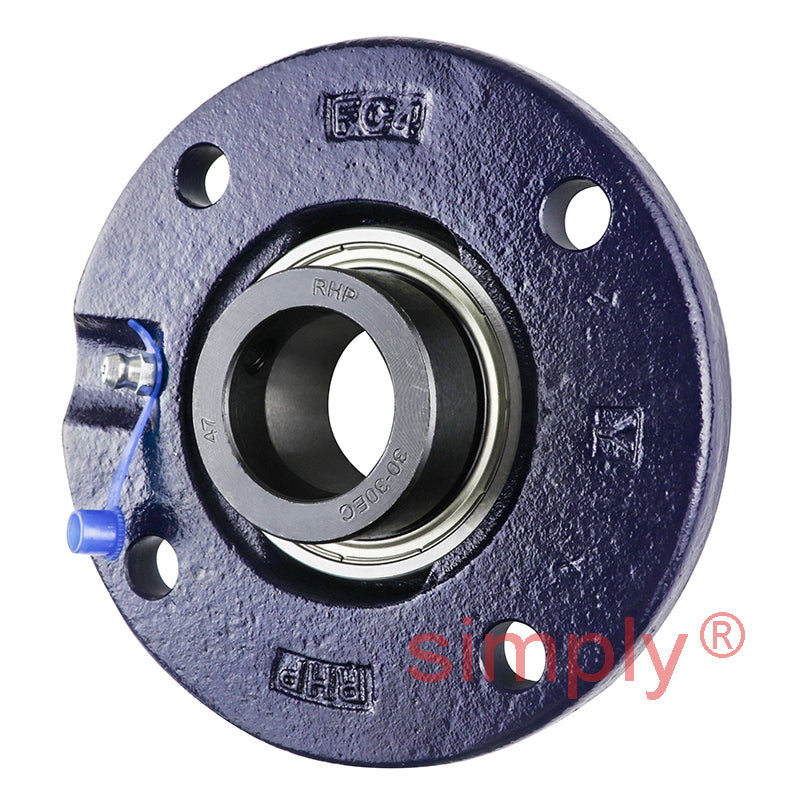

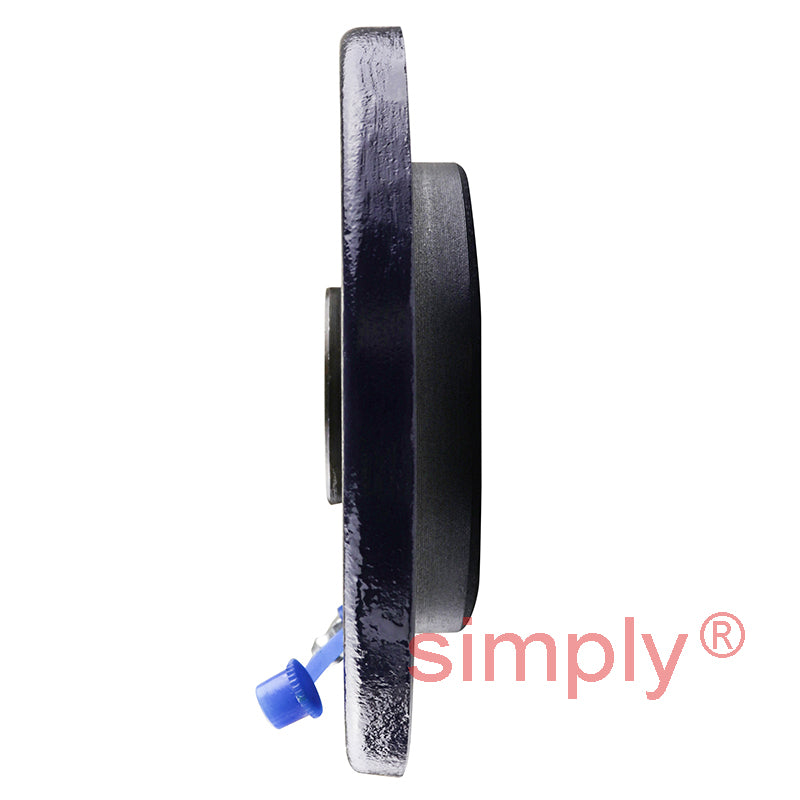

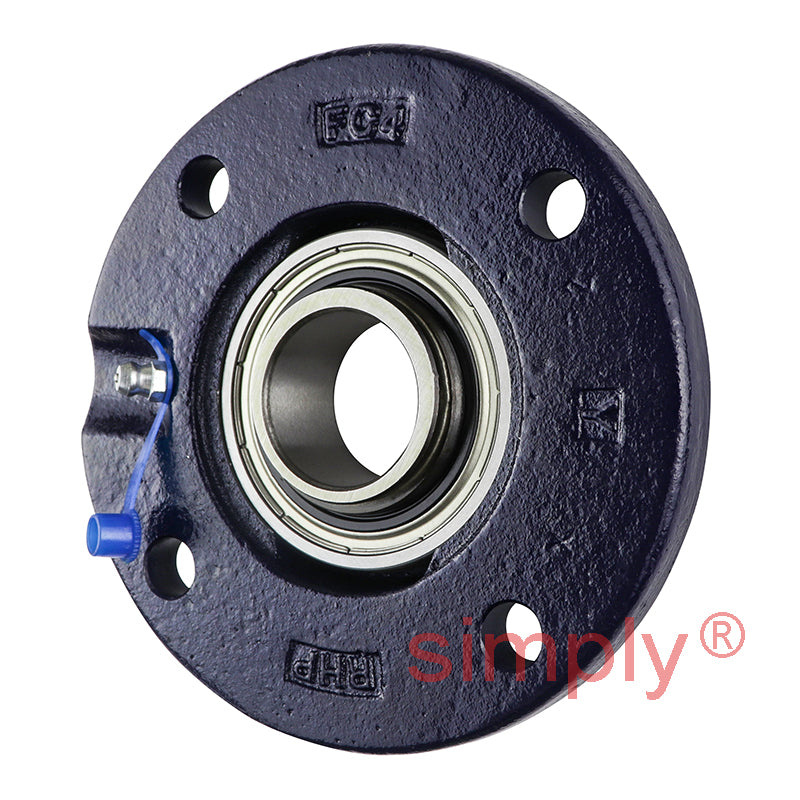

RHP FC30EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
Regular price
Rs. 7,023.38
ex VAT
Regular price
Sale price
Rs. 7,023.38
ex VAT
In stock
Price Break
10+
Rs. 6,250.81
19+
Rs. 5,899.64
29+
Rs. 5,829.41
39+
Rs. 5,759.17
49+
Rs. 5,688.94
74+
Rs. 5,618.70
99+
Rs. 5,267.54
199+
Rs. 5,197.30
249+
Rs. 5,127.07
499+
Rs. 5,056.83
999+
Rs. 4,916.37
Couldn't load pickup availability
Description
Description
|

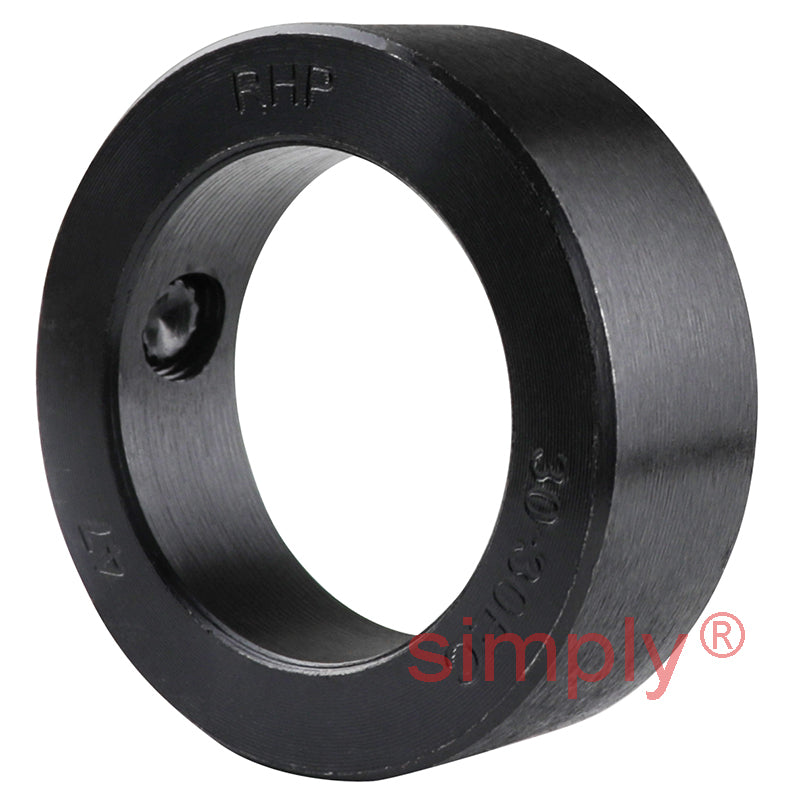

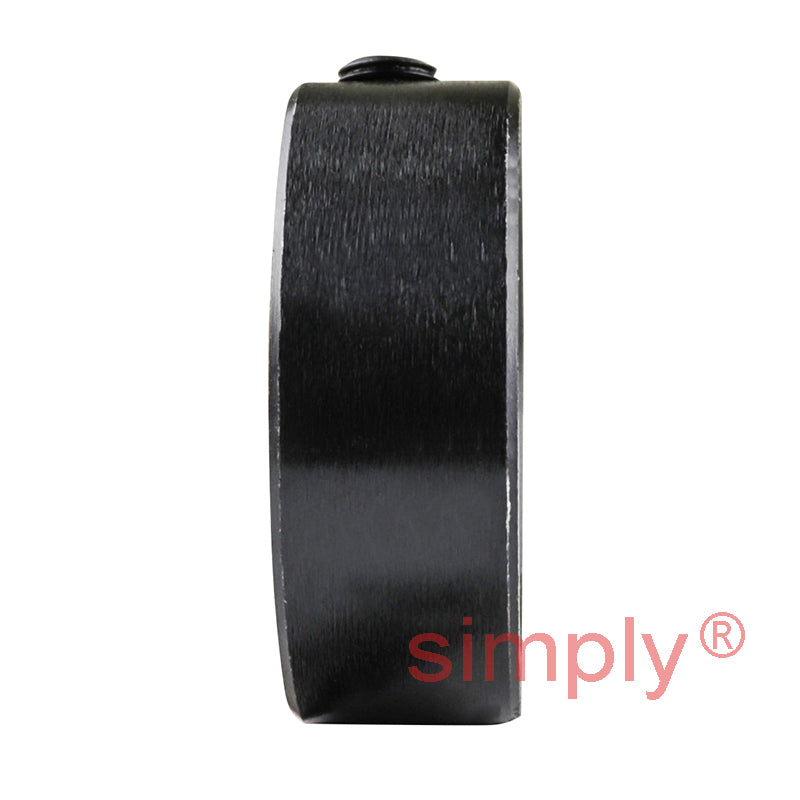

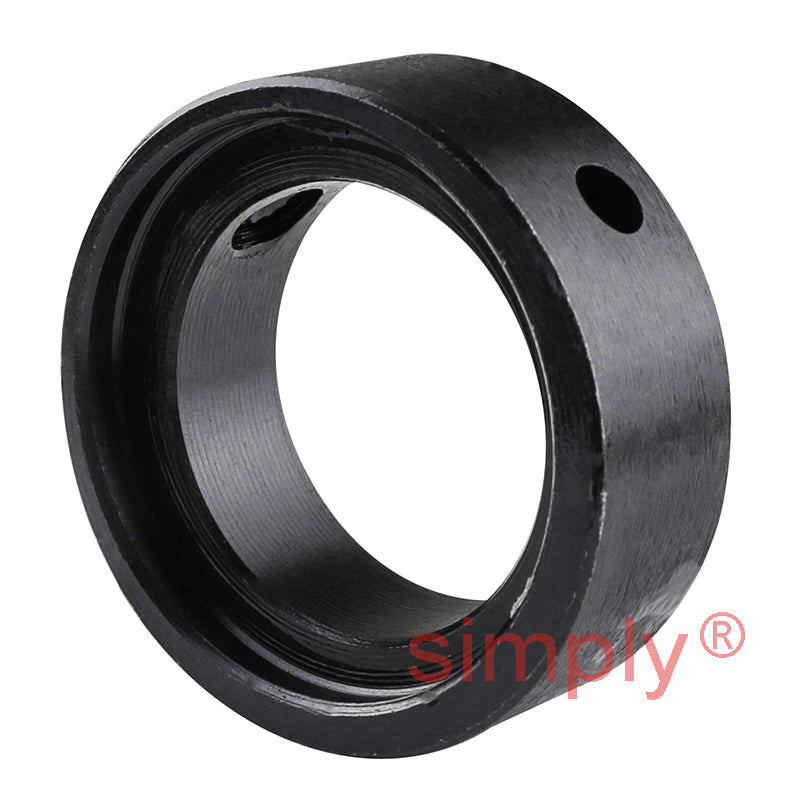

RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- FC
- Pitch Circle Diameter:
- 100mm
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 125mm |
| H | 80mm |
| J | 100mm |
| G | 10mm |
| A | 20.5mm |
| A2 | 24.64mm |
| A5 | 9.5mm |
| B2 | 35.68mm |
| s2 | 18.32mm |
| d2 | 44.45mm |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1230-30ECG+insonly">1230-30ECG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
