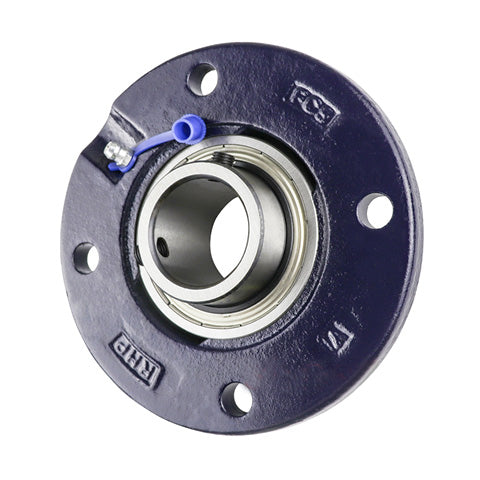

• RHP FC3/4A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 3/4 inch Insert
1 1

SKU: FC3/4A-RHP

RHP FC3/4A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 3/4 inch Insert

RHP FC3/4A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 3/4 inch Insert
Rs. 5,090.87 ex VAT
Rs. 5,090.87 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 4,530.87
19+ Rs. 4,276.33
29+ Rs. 4,225.42
39+ Rs. 4,174.51
49+ Rs. 4,123.60
74+ Rs. 4,072.70
99+ Rs. 3,818.15
199+ Rs. 3,767.24
249+ Rs. 3,716.34
499+ Rs. 3,665.43
999+ Rs. 3,563.61
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP FC A Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Style:
FC
Pitch Circle Diameter:
78.003mm = 3.071 inch
Technical
Bore 3/4 inch
L 3.937 inch
H 2.441 inch
J 3.071 inch
G 0.3125 inch
A 0.669 inch
A1 0.641 inch
A5 0.315 inch
B1 1.015 inch
s1 0.298 inch
d1 1.122 inch
Dynamic load 12800 N
Static load 6650 N
Rec max speed 6700 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1220-3/4AG+insonly">1220-3/4AG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
