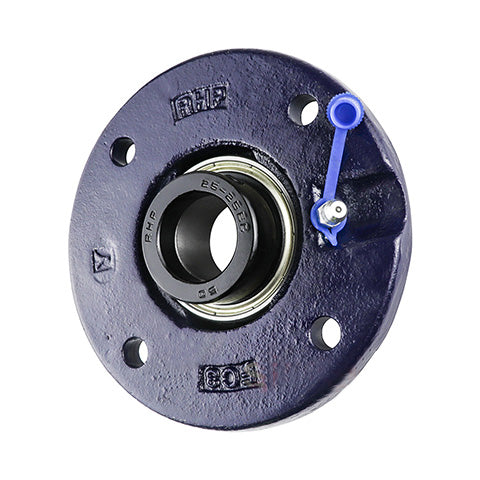

• RHP FC1.7/16DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert
1 1

SKU: FC1.7/16DEC-RHP

RHP FC1.7/16DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert

RHP FC1.7/16DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert
Rs. 9,495.36 ex VAT
Rs. 9,495.36 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 8,450.87
19+ Rs. 7,976.10
29+ Rs. 7,881.15
39+ Rs. 7,786.20
49+ Rs. 7,691.24
74+ Rs. 7,596.29
99+ Rs. 7,121.52
199+ Rs. 7,026.57
249+ Rs. 6,931.61
499+ Rs. 6,836.66
999+ Rs. 6,646.75
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Style:
FC
Pitch Circle Diameter:
110.01mm = 4.331 inch
Technical
Bore 1-7/16 inch
L 5.315 inch
H 3.543 inch
J 4.331 inch
G 0.375 inch
A 0.807 inch
A3 1.232 inch
A5 0.394 inch
B3 2.015 inch
s2 0.744 inch
d2 2.188 inch
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.5 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-7/16DECG+insonly">1035-1-7/16DECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
