SKU: FC1.3/4EC-RHP

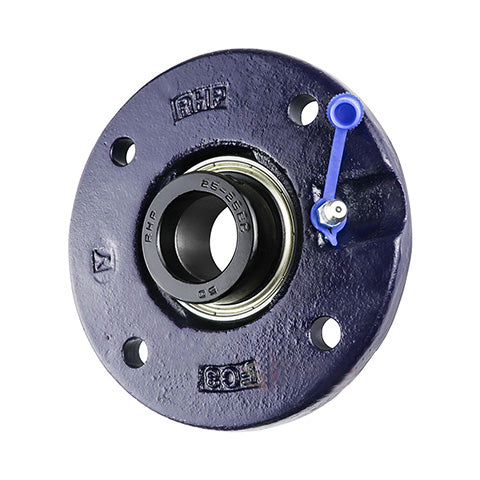

RHP FC1.3/4EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert
RHP FC1.3/4EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert
Regular price
Rs. 12,023.07
ex VAT
Regular price
Sale price
Rs. 12,023.07
ex VAT
In stock
Price Break
10+
Rs. 10,700.53
19+
Rs. 10,099.38
29+
Rs. 9,979.15
39+
Rs. 9,858.92
49+
Rs. 9,738.69
74+
Rs. 9,618.46
99+
Rs. 9,017.30
199+
Rs. 8,897.07
249+
Rs. 8,776.84
499+
Rs. 8,656.61
999+
Rs. 8,416.15
Couldn't load pickup availability
Description
Description
|
RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- FC
- Pitch Circle Diameter:
- 129.997mm = 5.118 inch
Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| L | 6.102 inch |
| H | 4.134 inch |
| J | 5.118 inch |
| G | 0.5 inch |
| A | 0.984 inch |
| A2 | 1.204 inch |
| A5 | 0.472 inch |
| B2 | 1.718 inch |
| s2 | 0.845 inch |
| d2 | 2.5 inch |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3400 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1250-1-3/4ECG+insonly">1250-1-3/4ECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
