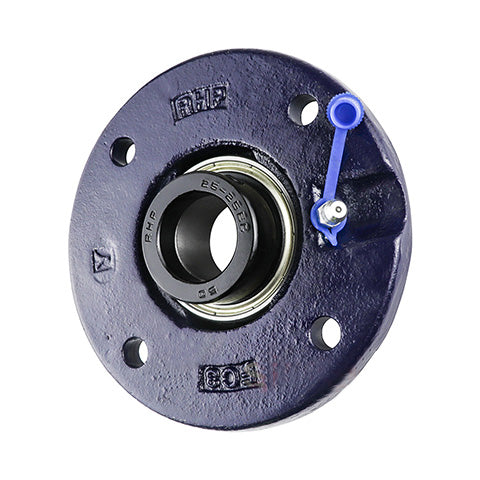

• RHP FC1.1/2EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/2 inch Insert
1 1

SKU: FC1.1/2EC-RHP

RHP FC1.1/2EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/2 inch Insert

RHP FC1.1/2EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/2 inch Insert
Rs. 10,238.94
Rs. 10,238.94
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 9,112.66
19+ Rs. 8,600.71
29+ Rs. 8,498.32
39+ Rs. 8,395.93
49+ Rs. 8,293.54
74+ Rs. 8,191.15
99+ Rs. 7,679.21
199+ Rs. 7,576.82
249+ Rs. 7,474.43
499+ Rs. 7,372.04
999+ Rs. 7,167.26
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
FC
Pitch Circle Diameter:
119.99mm = 4.724 inch

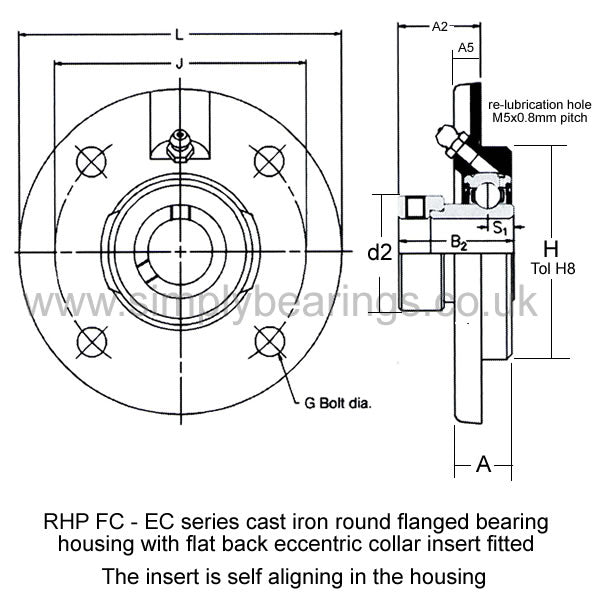

Technical
Bore 1-1/2 inch
L 5.709 inch
H 3.937 inch
J 4.724 inch
G 0.375 inch
A 0.906 inch
A2 1.244 inch
A5 0.453 inch
B2 1.718 inch
s2 0.845 inch
d2 2.374 inch
Dynamic load 32500 N
Static load 19900 N
Rec max speed 4000 rpm
Weight 1.8 kg
Insert <a href="advanced_search_result.php?keywords=1240-1-1/2ECG+insonly">1240-1-1/2ECG Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
