SKU: FBL-M16CG-DUN

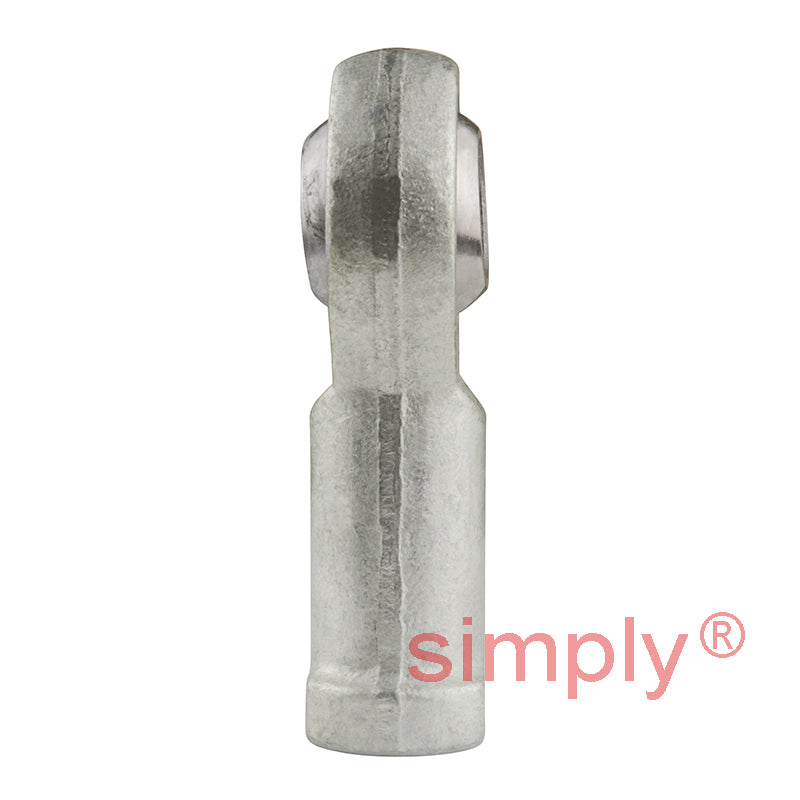

Dunlop FBL-16CG Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x1.5 Thread - Allow 7-10 Days
Dunlop FBL-16CG Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x1.5 Thread - Allow 7-10 Days
Regular price
Rs. 2,260.47
ex VAT
Regular price
Sale price
Rs. 2,260.47
ex VAT
In stock
Price Break
10+
Rs. 2,011.82
19+
Rs. 1,898.79
29+
Rs. 1,876.19
39+
Rs. 1,853.59
49+
Rs. 1,830.98
74+
Rs. 1,808.38
99+
Rs. 1,695.35
199+
Rs. 1,672.75
249+
Rs. 1,650.14
499+
Rs. 1,627.54
999+
Rs. 1,582.33
Couldn't load pickup availability
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M16x1.5
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Liner Type:
- Bronze Lined
Technical
Technical
| Bore size | 16mm |
|---|---|
| Thread | M16x1.5 |
| W | 21mm |
| H | 15mm |
| D | 38mm |
| L1 | 64mm |
| L2 | 33mm |
| O | 19.3mm |
| AF | 22mm |
| Static load | 0.3713 N |
