SKU: FBL-M12S-MB

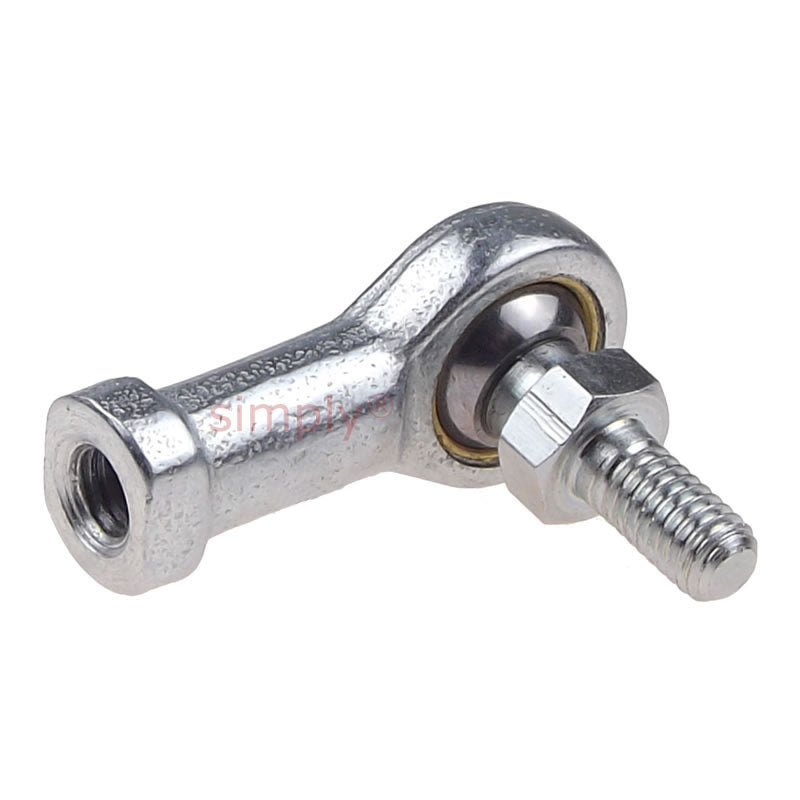

Branded FBL-M12S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M12x1.75 Thread
Branded FBL-M12S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M12x1.75 Thread
Regular price
Rs. 2,469.40
ex VAT
Regular price
Sale price
Rs. 2,469.40
ex VAT
Equivalent to: PHS12L+STUD
In stock
Price Break
10+
Rs. 2,197.77
19+
Rs. 2,074.30
29+
Rs. 2,049.60
39+
Rs. 2,024.91
49+
Rs. 2,000.21
74+
Rs. 1,975.52
99+
Rs. 1,852.05
199+
Rs. 1,827.36
249+
Rs. 1,802.66
499+
Rs. 1,777.97
999+
Rs. 1,728.58
Couldn't load pickup availability
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Equivalent: PHS12L+STUD
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M12x1.75
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Liner Type:
- Bronze Lined
Technical
Technical
| Stud size | M12 |
|---|---|
| Thread | M12x1.75 |
| A | 24mm |
| B | 24mm |
| C | 21mm |
| K | 19mm |
| Static load | 5720 N |
